Dodge® 20S20R DOD20S20R
  1. pin-int

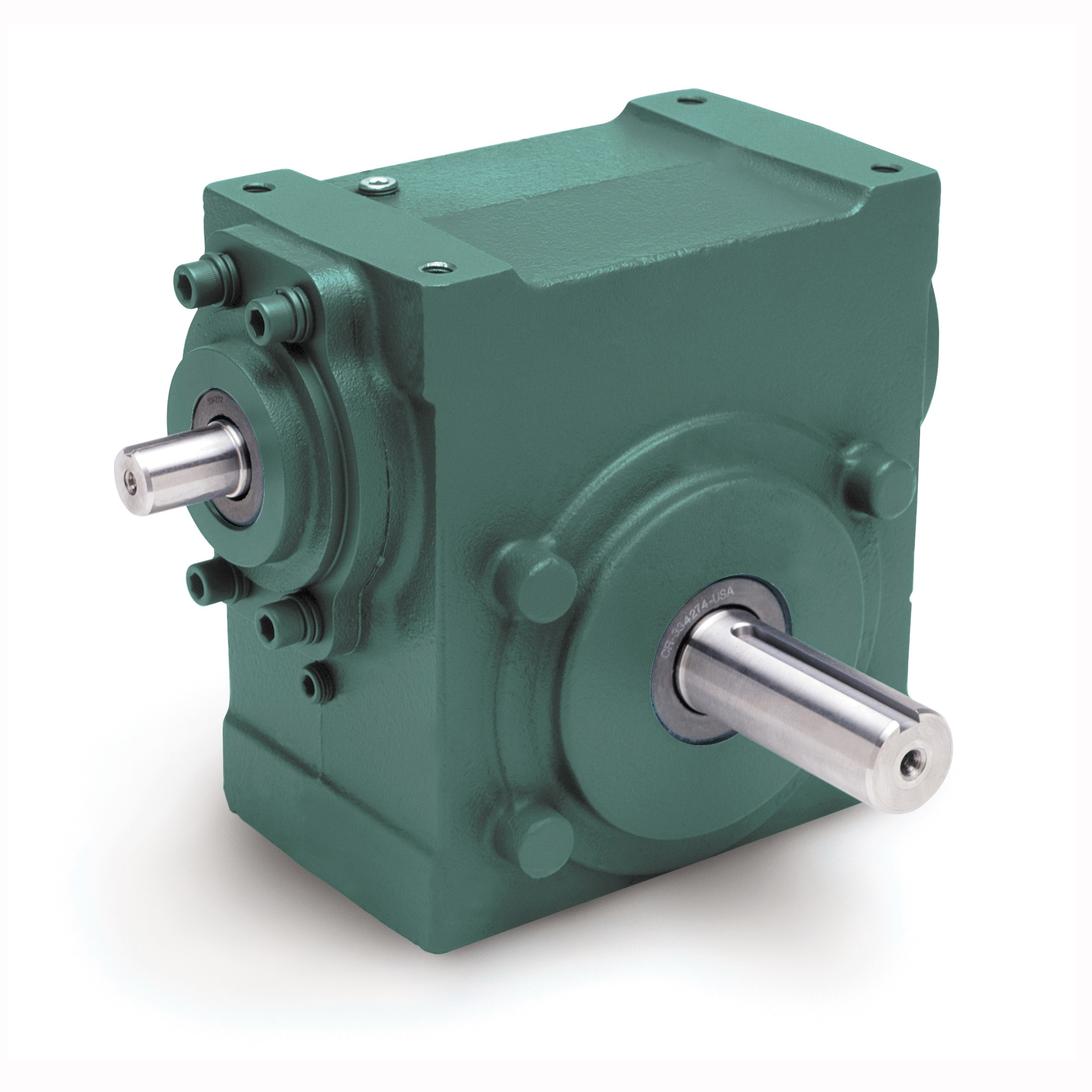

Dodge® 20S20R DOD20S20R

Dodge® Tigear-2® 20S20R Size 20 Standard Right Angle Worm Gear Speed Reducer, Separate Input, Solid B Shaft Output, 1.34 hp, 20:1 Gear, 88 rpm Maximum Output, 796 in-lb Torque Rating

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD20S20R
  • MPN: 20S20R
  • UPC: 782475749386
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

The Tigear-2® is a right angle, single stage worm gear reducer with a rugged cast iron housing and power dense gearing design to ensure maximum reliability. Stainless Steel and the exclusive E-Z-Kleen® finish are available for tough washdown applications.

Dodge® Tigear-2® Right Angle Worm Gear Speed Reducer, Size 20 Standard, 20:1 Gear Ratio, 1.34 hp, Separate Input, Solid B Shaft Output, 5/8 in Input, 1 in Output, 88 rpm Output Maximum, 1750 rpm Input Maximum, 796 in-lb Torque, 2 in Centre Distance, 1-3/4 in L x 1/4 in W x 1/4 in H Keyway, 60 to 95 % Efficiency, Right Hand Rotation, Synthetic Oil Lubrication, No Base Mounting, Gray Iron, 8.7 in L x 9.38 in W x 6.35 in H Dimensions

Centre Distance      :      2 in
Dimensions      :      8.7 in L x 9.38 in W x 6.35 in H
Efficiency      :      60 to 95 %
Gear Ratio      :      20:1
Horsepower      :      1.34 hp
Input Maximum Speed      :      1750 rpm
Input Size      :      5/8 in
Input Type      :      Separate
Keyway Size      :      1-3/4 in L x 1/4 in W x 1/4 in H
Lubrication Type      :      Synthetic Oil
Material      :      Gray Iron
Mounting Type      :      No Base
Output Maximum Speed      :      88 rpm
Output Size      :      1 in
Output Type      :      Solid B Shaft
Rotation Type      :      Right Hand
Torque Rating      :      796 in-lb
Type      :      Size 20 Standard
  • Worm shaft machining process increases gear precision and accuracy by more than twice the norm
  • Precise plunge grinding process eliminates invisible lead and assures cool running
  • Higher torque capacity
  • Greater efficiency
  • New bronze gear material has an extremely fine grain structure for maximum durability and minimum wear
  • Breather free, sealed design
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_20S20R_Specification_Sheet.pdf
