Dodge® 20Q04H56 DOD20Q04H56

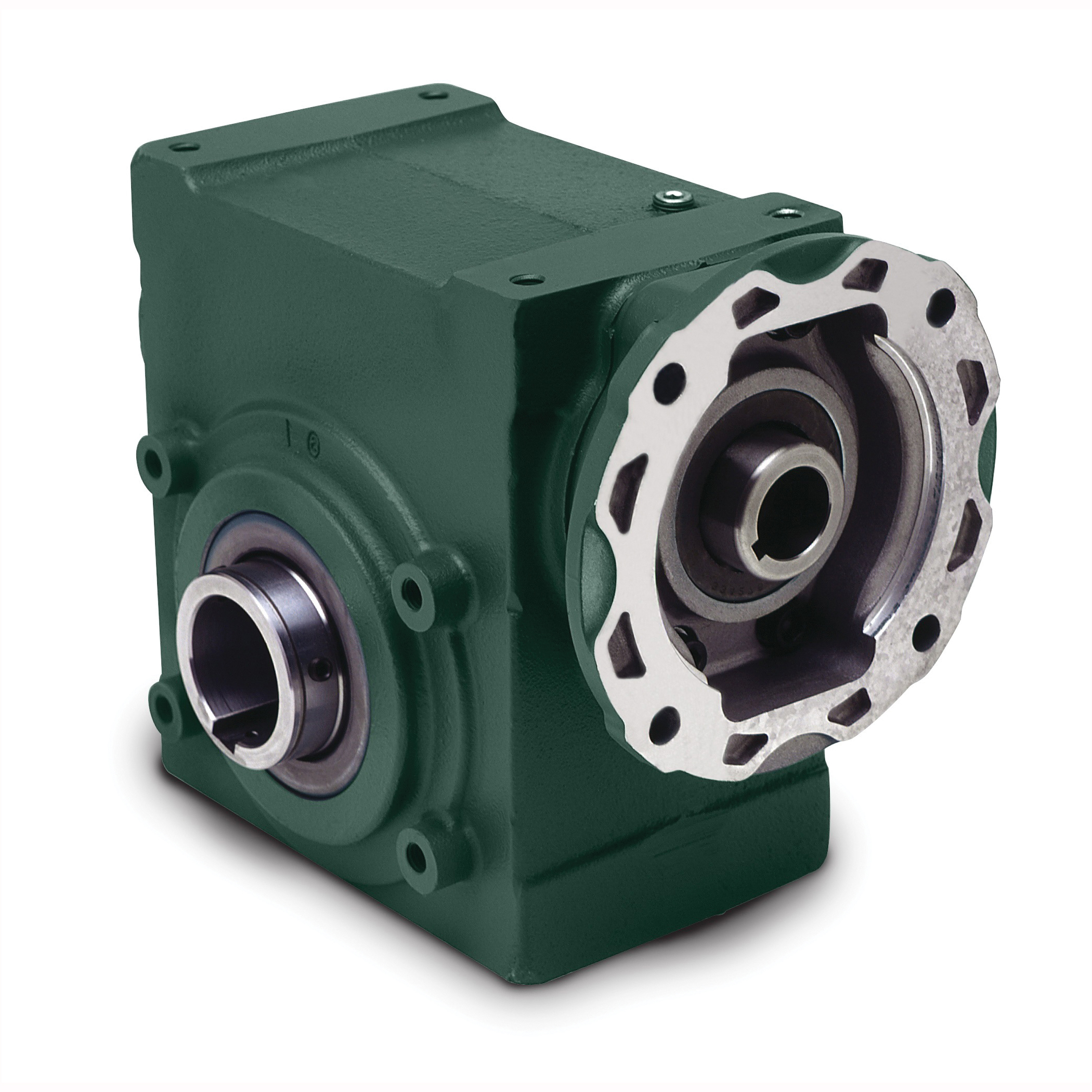

Dodge® Tigear-2® 20Q04H56 Size 20 Standard Right Angle Worm Gear Speed Reducer, Quill Input, Hollow Shaft Output, 4:1 Gear
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD20Q04H56
- MPN: 20Q04H56
- UPC: 782476185527
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The Tigear-2® is a right angle, single stage worm gear reducer with a rugged cast iron housing and power dense gearing design to ensure maximum reliability. Stainless Steel and the exclusive E-Z-Kleen® finish are available for tough washdown applications.
Dodge® Tigear-2® Right Angle Worm Gear Speed Reducer, Size 20 Standard, 4:1 Gear Ratio, Quill Input, Hollow Shaft Output, 1-1/4 in Output, 1750 rpm Input Maximum, 2 in Centre Distance, 3/16 in L x 3/16 in W x 1-1/2 in H Keyway, 60 to 95 % Efficiency, Synthetic Oil Lubrication, Gray Iron, 8.6 in L x 5.7 in W x 7.5 in H Dimensions
| Centre Distance | : | 2 in |
| Dimensions | : | 8.6 in L x 5.7 in W x 7.5 in H |
| Efficiency | : | 60 to 95 % |
| Gear Ratio | : | 4:1 |
| Input Maximum Speed | : | 1750 rpm |
| Input Type | : | Quill |
| Keyway Size | : | 3/16 in L x 3/16 in W x 1-1/2 in H |
| Lubrication Type | : | Synthetic Oil |
| Material | : | Gray Iron |
| Output Size | : | 1-1/4 in |
| Output Type | : | Hollow Shaft |
| Type | : | Size 20 Standard |
- Worm shaft machining process increases gear precision and accuracy by more than twice the norm
- Precise plunge grinding process eliminates invisible lead and assures cool running
- Higher torque capacity
- Greater efficiency
- New bronze gear material has an extremely fine grain structure for maximum durability and minimum wear
- Breather free, sealed design
Specification Sheet
