Dodge® 1VP44X3/4 DOD1VP443/4
  1. pin-int

Dodge® 1VP44X3/4 DOD1VP443/4

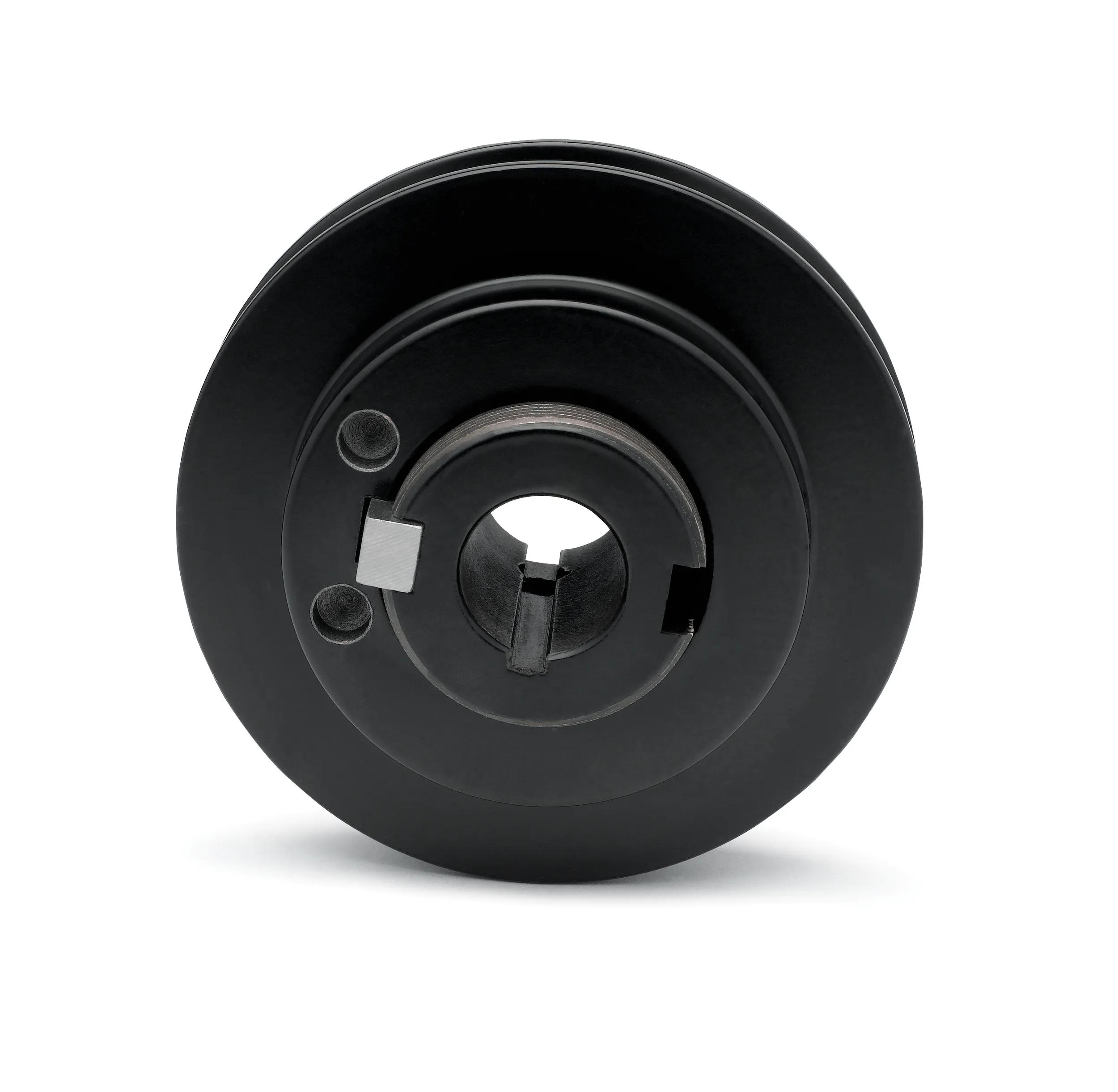

Dodge® 1VP44X3/4 VP Series Type 1 Adjustable Pitch Sheave, 3/4 in Bore, 4.15 in OD, 1 Grooves, 2.95 to 3.75 in (3L)/3.05 to 4.05 in (A/4L)/3.45 to 4.45 in (B/5L) Dia Pitch, 11/16 to 1-1/16 in W Face

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD1VP443/4
  • MPN: 1VP44X3/4
  • UPC: 775829145460
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Adjustable Pitch Sheave, Type 1, Series: VP Series, 3/4 in Bore, 4.15 in OD, 2.95 to 3.75 in (3L)/3.05 to 4.05 in (A/4L)/3.45 to 4.45 in (B/5L) Pitch Diameter, 1 Grooves, 11/16 to 1-1/16 in Face Width, 5-7/8 in Overall Length, For Use With: 3L/A, 4L/B, 5L Cross Section Belts, Cast Iron

Bore Diameter      :      3/4 in
Face Width      :      11/16 to 1-1/16 in
Material      :      Cast Iron
Number of Grooves      :      1
Outside Diameter      :      4.15 in
Overall Length      :      5-7/8 in
Pitch Diameter      :      2.95 to 3.75 in (3L)/3.05 to 4.05 in (A/4L)/3.45 to 4.45 in (B/5L)
Series      :      VP Series
Suitable For Use With      :      3L/A, 4L/B, 5L Cross Section Belts
Type      :      Type 1
  • Finished bore variable speed sheaves made of cast iron and designed for heavier duty service up to 25 hp
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_1VP44X3_4_Specification_Sheet.pdf
