Dodge® 17FLANGE DOD17FLANGE

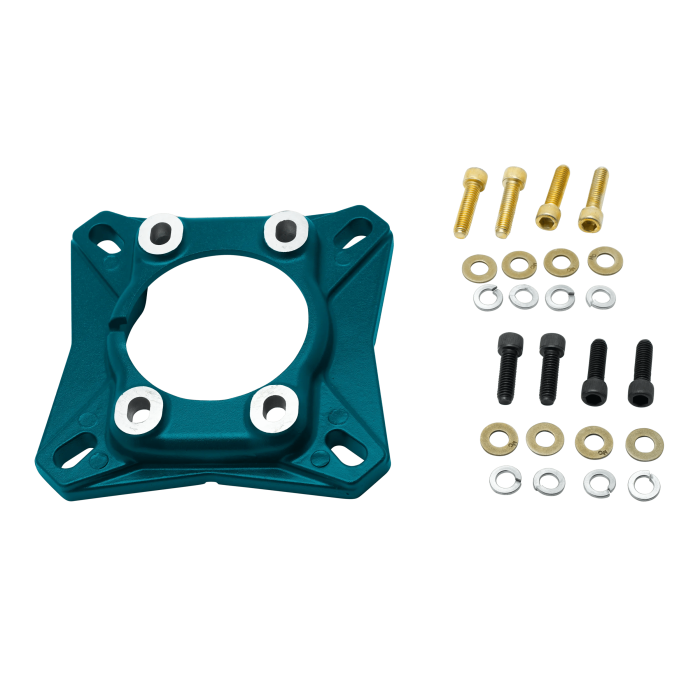

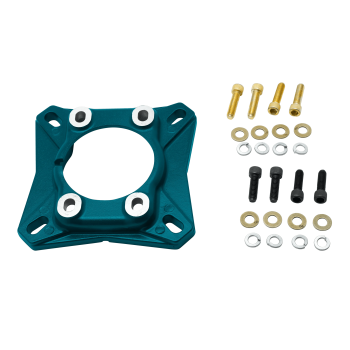

The output cast flange kit is used to mount hollow shaft reducers to a flat surface perpendicular to the output shaft. The flange may be substituted for a tie rod kit to restrain reactions. Each kit consists of a flange and required mounting hardware. The output flange kit can be mounted to either side of a hollow output reducer. When used with Grip-Tight® bushings, a single bushing with key must be used and located on the side opposite of the cast output flange.

Dodge® Output Flange Kit, For Use With: Tigear-2® Size 17 Tapered Bushing Speed Reducer, Cast Aluminum

• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_17FLANGE_Line_Drawing.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_17FLANGE_Specification_Sheet.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_20BUSH100_Catalog.pdf
