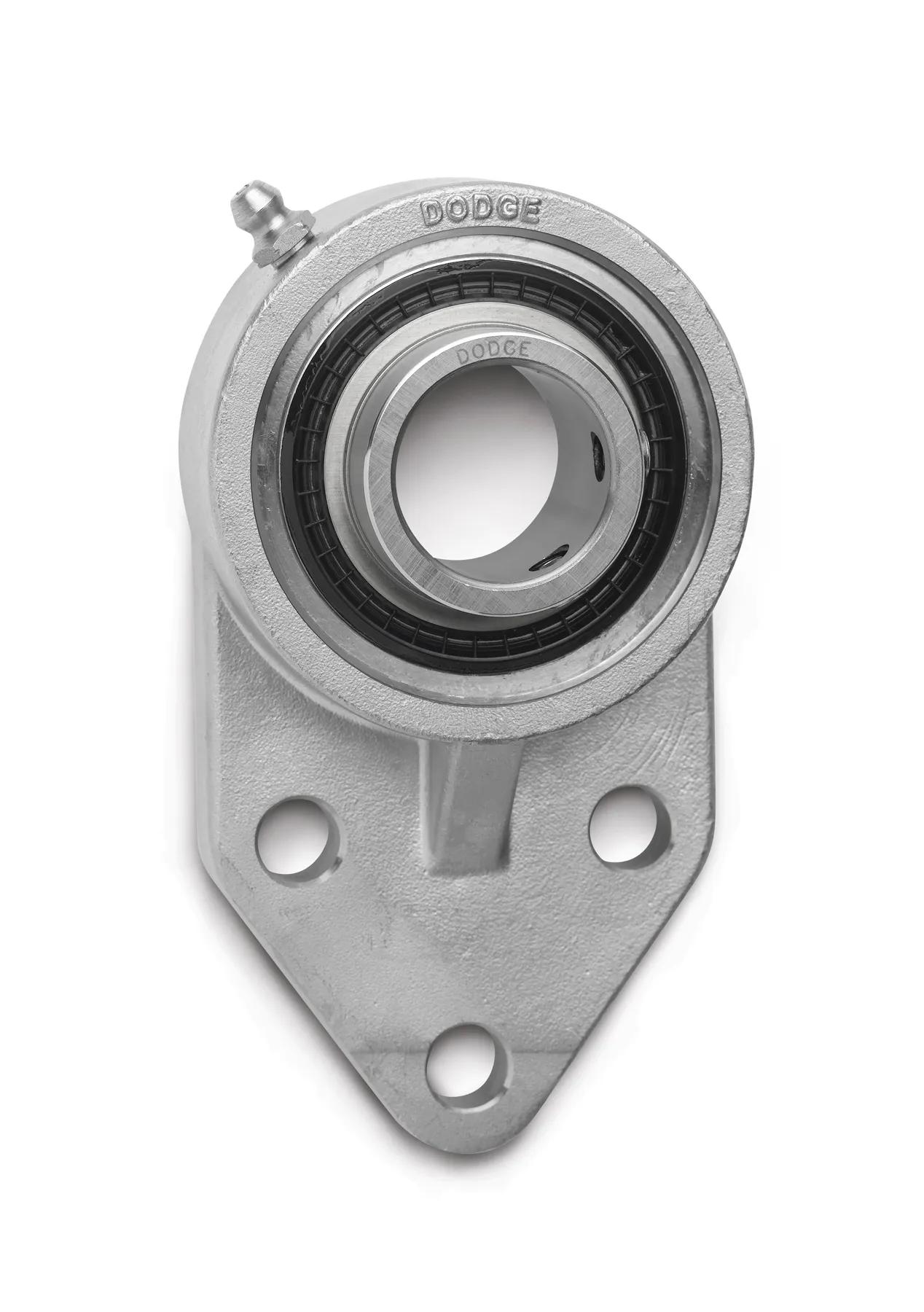

Dodge® 136803 DOD136803

Dodge® Ultra Kleen™ mounted ball bearings are ideal for washdown applications. The stainless steel set screw (SC) insert is deployed in either of a polymer or stainless steel housing. The QuadGuard™ triple lip seal with rubberized flinger provides superior protection against contaminants while the patented Maxlife™ cage retains lubricant.

Dodge® Ultra Kleen™ Ball Bearing Unit, Normal Duty Non-Expansion, Series: 206, 1-3/16 in Bore, 1.88 in Bolt Center-to-Center Length, 3-Bolt Bracket Flange Mounting, 3.12 in Overall Length/Diameter, 1.59 in Overall Depth, 5.31 in Overall Height, 65 deg Set Screw Locking Device, Stainless Steel Bearing, 3713 lb Dynamic/2538 lb Static Load, 5250 rpm Maximum, Uncoated

• Stainless steel housings feature a solid base, with no cavities or fillings to trap contaminants
• Mechanically retained QuadGuard® sealing system with triple lip seal and rubberized flinger that closes the gap left by conventional all metal flinger designs
• Maxlife™ cage creates grease compartments around each rolling element, allowing balls to be constantly in contact with grease, and insure grease retention in potential washout conditions
• H1 registered food grade lubricant
• Standard food grade lubrication
• Wide inner ring design
• Stainless steel housing and insert

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_068337_Manual.pdf
