Dodge 136290 FC-GTM-45M Ball Bearing Cartridge

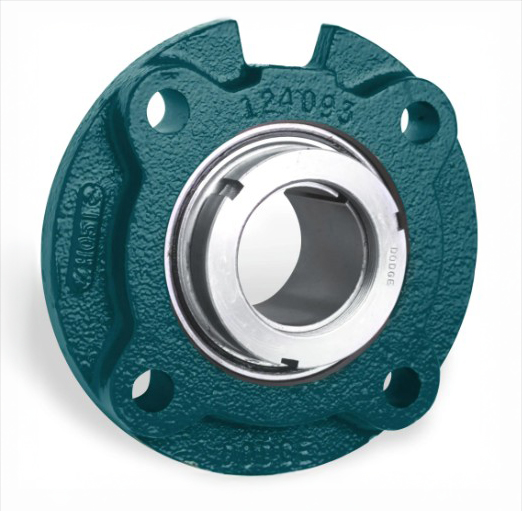

Dodge® FC-GTM-45M (136290) 210 Medium Duty Non-Expansion Ball Bearing Cartridge Unit, 45 mm Dia Bore, 130.3 mm Dia Bolt Circle, 4-Bolt Base/Piloted Flange Mount, 155.7 mm OAL/Dia
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD136290
- Alt Part Number: FC-GTM-45M
- MPN: 136290
- UPC: 782475992553
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® FC-GTM-45M (136290) is a Series 210 Medium Duty Non-Expansion flange mount ball bearing unit. Key specifications include bore: 45 mm, maximum speed: 7500 rpm, and load capacity: 7891 lb Dynamic/5213 lb Static. The Dodge® Grip-Tight® mounted ball bearing is the maintenance-friendly solution for all of your ball bearing application needs, capable of performing critical functions in many operations. Grip-Tight® mounted ball bearings offer a unique method of shaft attachment via a thin wall tapered adapter sleeve and locknut design. Because of this system, bearing assemblies may be installed and removed from a shaft easily. 360 deg of concentric grip on the shaft for the entire length-through-bore of the bearing means Grip-Tight® provides a tight press fit with no shaft damage, even on commercial grade shafting.
Dodge® FC-GTM-45M (136290) Ball Bearing Cartridge Unit, Medium Duty Non-Expansion, Series: 210, 45 mm Bore Dia, 130.3 mm Bolt Circle, 4-Bolt Base/Piloted Flange Mounting Type, 155.7 mm Overall Length/Diameter, 51.3 mm Overall Depth, Grip-Tight® Adapter Mounted Locking Device, Steel Bearing, 7891 lb Dynamic/5213 lb Static, 7500 rpm Maximum
| Bearing Material | : | Steel |
| Bolt Circle Diameter | : | 130.3 mm |
| Bore Diameter | : | 45 mm |
| Flange Mounting Type | : | 4-Bolt Base/Piloted |
| Load Capacity | : | 7891 lb Dynamic/5213 lb Static |
| Locking Device | : | Grip-Tight® Adapter Mounted |
| Maximum Speed | : | 7500 rpm |
| Overall Depth | : | 51.3 mm |
| Overall Length/Diameter | : | 155.7 mm |
| Series | : | 210 |
| Type | : | Medium Duty Non-Expansion |
- Patented pull/push thin wall Grip-Tight® adapter system
- Ideal for high-speed applications in which concentricity is important
- Little or no bearing vibration at high speeds
- More efficient fan balancing
- Decreased labor during removal with no shaft reconditioning
- Alleviates setscrew issues due to vibration
- Wide inner ring design, thin wall adapter locking
- Reduced shafting costs
- Inventory savings
- Patented DualGuard™ seal, featuring the rubberized flinger is standard
