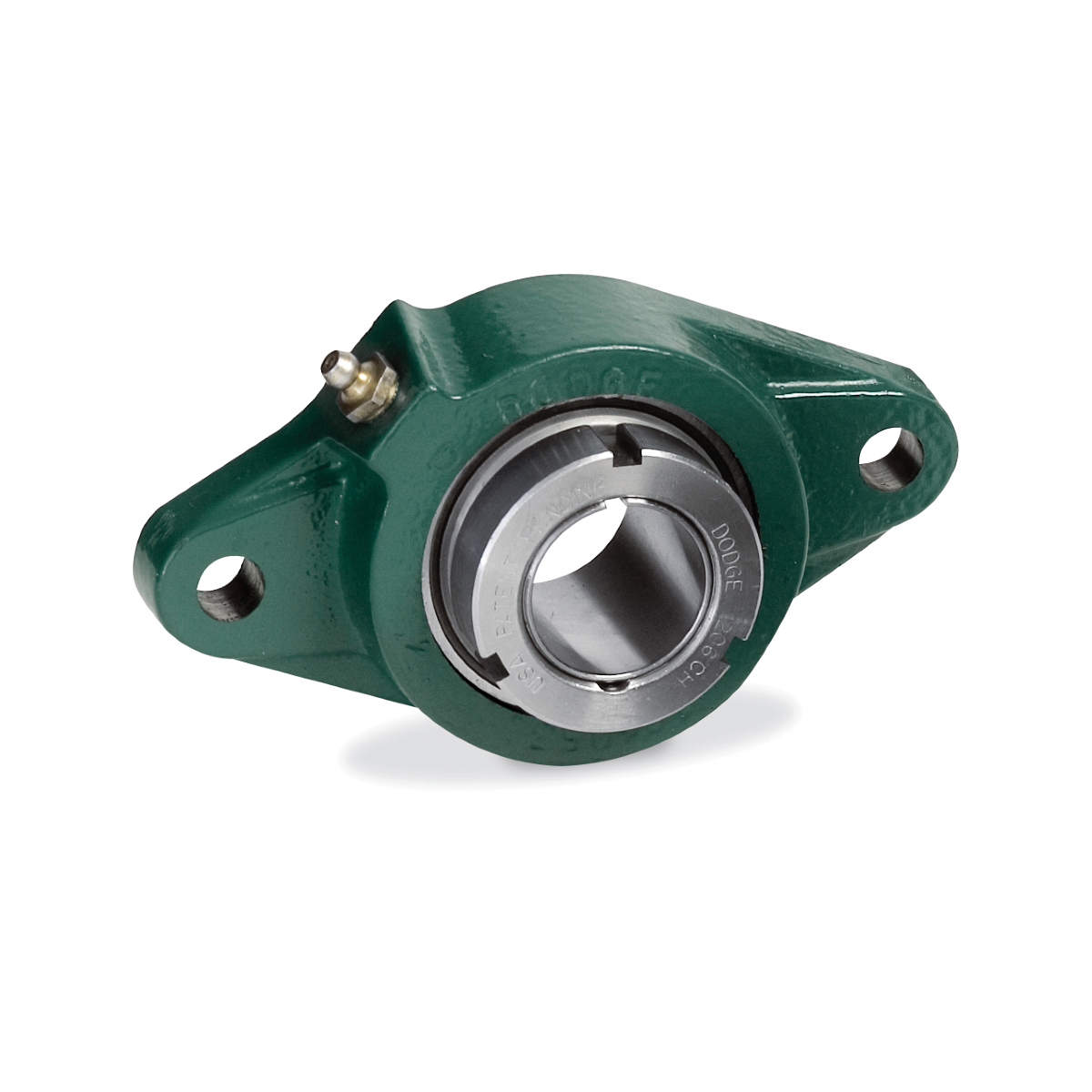

Dodge® 136269 DOD136269

The Dodge® Grip-Tight® mounted ball bearing is the maintenance-friendly solution for all of your ball bearing application needs, capable of performing critical functions in many operations. Grip-Tight® mounted ball bearings offer a unique method of shaft attachment via a thin wall tapered adapter sleeve and locknut design. Because of this system, bearing assemblies may be installed and removed from a shaft easily. 360 deg of concentric grip on the shaft for the entire length-through-bore of the bearing means Grip-Tight® provides a tight press fit with no shaft damage, even on commercial grade shafting.

Dodge® Ball Bearing Unit, Medium Duty Non-Expansion, Series: 207, 30 mm Bore, 130 mm Bolt Center-to-Center Length, 2-Bolt Base Flange Mounting, 155.7 mm Overall Length/Diameter, 45.5 mm Overall Depth, 95.3 mm Overall Height, Grip-Tight® Adapter Mounted Locking Device, Steel Bearing, Nitrile Rubber Seal, 5759 lb Dynamic/3461 lb Static Load, 9500 rpm Maximum

• Patented pull/push thin wall Grip-Tight® adapter system
• Ideal for high-speed applications in which concentricity is important
• Little or no bearing vibration at high speeds
• More efficient fan balancing
• Decreased labor during removal with no shaft reconditioning
• Alleviates setscrew issues due to vibration
• Reduced shafting costs
• Inventory savings
• Patented DualGuard™ seal, featuring the rubberized flinger is standard
• Wide inner ring design

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_07211110745e572c66ad1ce9a5e95919ce0b06988cc90994c1aed68b3503cd4c.pdf
