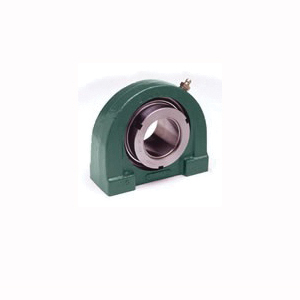

Dodge® 136235 DOD136235

The Dodge® Grip-Tight® mounted ball bearing is the maintenance-friendly solution for all of your ball bearing application needs, capable of performing critical functions in many operations. Grip-Tight® mounted ball bearings offer a unique method of shaft attachment via a thin wall tapered adapter sleeve and locknut design. Because of this system, bearing assemblies may be installed and removed from a shaft easily. 360 deg of concentric grip on the shaft for the entire length-through-bore of the bearing means Grip-Tight® provides a tight press fit with no shaft damage, even on commercial grade shafting.

Dodge® Top Angle Take-Up Adapter Ball Bearing, Non-Expansion Normal Duty, Series: 215, 2-15/16 in Bore, 8-1/2 in Length, 2-3/4 in Width, 8.31 in Height, 14872 lb Dynamic/11108 lb Static Load, For Use With: TP40 Top Angle Take-Up Frame, Steel Bearing, 400 deg F, Uncoated

• Patented pull/push thin wall adapter system
• Ideal for high-speed applications in which concentricity is important
• Little or no bearing vibration at high speeds
• More efficient fan balancing
• Decreased labor during removal with no shaft reconditioning
• Alleviates setscrew issues due to vibration
• Reduced shafting costs
• Inventory savings
• Patented DualGuard® seal
• Full contact on shaft for better grip

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_065931_Catalog.pdf
• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_136210_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_136210_Specification_Sheet.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_136231_Line_Drawing.pdf
