Dodge® 131972 DOD131972

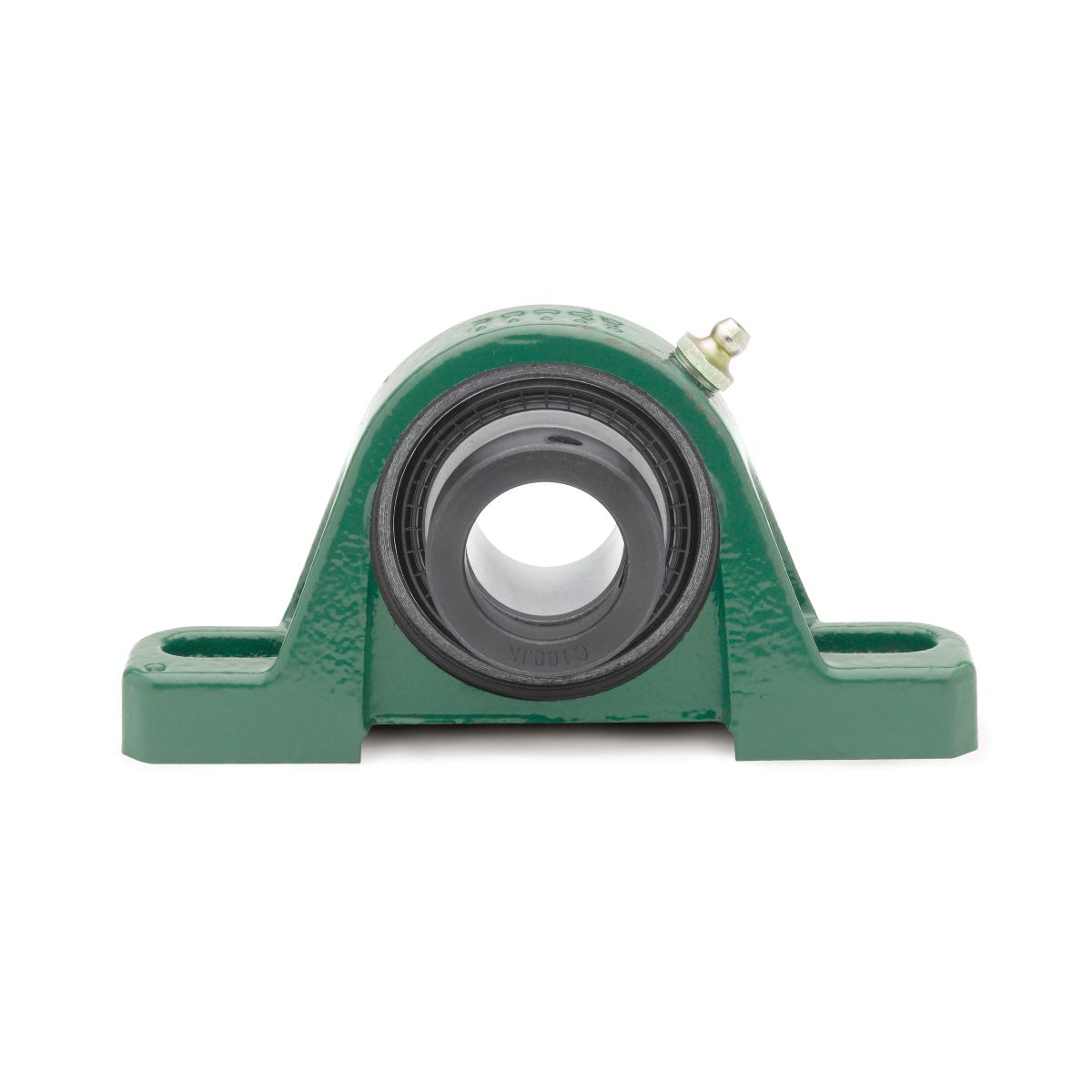

Dodge® 131972 205 Intermediate Duty Pillow Block Ball Bearing Unit, 15/16 in Dia Bore, 3.69 to 4.5 in L Bolt Center-to-Center, 1.44 in Base to Bore Centerline, 5-1/2 in OAL x 2.77 in OAH
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD131972
- Alt Part Number: P2B-SXV-015
- MPN: 131972
- UPC: 782475119615
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Pillow Block Ball Bearing Unit, Intermediate Duty, Series: 205, 15/16 in Bore, 3.69 to 4.5 in Bolt Center-to-Center Length, 1.44 in Base to Bore Centerline, 5-1/2 in Overall Length, 1.22 in Overall Width, 2.77 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1.4 in Base Width, Eccentric Collar Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 3146 lb Dynamic/1769 lb Static Load, 7500 rpm Maximum, Cast Iron, Powder Coated
| Base Width | : | 1.4 in |
| Base to Bore Centerline | : | 1.44 in |
| Bolt Center-to-Center Length | : | 3.69 to 4.5 in |
| Bore Diameter | : | 15/16 in |
| Bore Type | : | Round |
| Expansion Type | : | Non-Expansion (Fixed) |
| Finish | : | Powder Coated |
| Load Capacity | : | 3146 lb Dynamic/1769 lb Static |
| Locking Device | : | Eccentric Collar |
| Material | : | Cast Iron |
| Maximum Speed | : | 7500 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 2.77 in |
| Overall Length | : | 5-1/2 in |
| Overall Width | : | 1.22 in |
| Seal Type | : | Single Lip |
| Series | : | 205 |
| Type | : | Intermediate Duty |
- Narrow inner ring design
- Fiberglass reinforced nylon cage
- Grade 10 balls
- ProGuard™ single lip seal
- No groove in housing for end cover
Specification Sheet
