Dodge® 130702 DOD130702

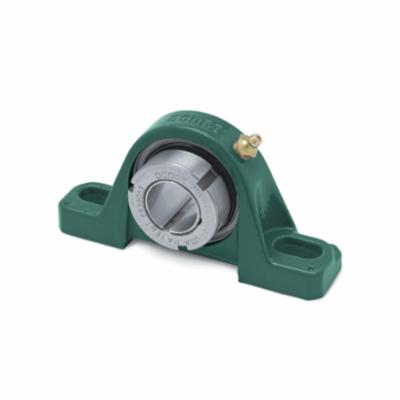

Dodge® 130702 212 Normal Duty Pillow Block Adapter Ball Bearing, 7-1/2 to 8-1/2 in L Bolt Center-to-Center, 3 in Base to Bore Centerline, 10-1/4 in OAL x 6.09 in OAH
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD130702
- Alt Part Number: P2B-GTH-12-E
- MPN: 130702
- UPC: 782475992959
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The Grip Tight® ball bearing is shaft-ready right out of the box and offered in a variety of housing styles for normal and medium duty operations. It accommodates commercial grade and some undersized shafting to lower costs, and all Grip Tight® assemblies fit into a standard Dodge® ball bearing housing.
Dodge® Pillow Block Adapter Ball Bearing, Normal Duty, Series: 212, 7-1/2 to 8-1/2 in Bolt Center-to-Center Length, 3 in Base to Bore Centerline, 10-1/4 in Overall Length, 2.12 in Overall Width, 6.09 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2.69 in Base Width, Grip-Tight® Adapter Mounted Locking Device, Single Lip Seal, Expansion Expansion, 11791 lb Dynamic/8100 lb Static Load, 6000 rpm Maximum, Steel, Powder Coated
| Base Width | : | 2.69 in |
| Base to Bore Centerline | : | 3 in |
| Bolt Center-to-Center Length | : | 7-1/2 to 8-1/2 in |
| Bore Type | : | Round |
| Expansion Type | : | Expansion |
| Finish | : | Powder Coated |
| Load Capacity | : | 11791 lb Dynamic/8100 lb Static |
| Locking Device | : | Grip-Tight® Adapter Mounted |
| Material | : | Steel |
| Maximum Speed | : | 6000 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 6.09 in |
| Overall Length | : | 10-1/4 in |
| Overall Width | : | 2.12 in |
| Seal Type | : | Single Lip |
| Series | : | 212 |
| Type | : | Normal Duty |
- Non-metallic retainer provides added strength
- Grade 10 balls for quiet operation
- Case-carburized inner ring ensures greater wear resistance and longer life
- Lock/inner ring interface acts as bearing puller to ease disassembly
- Rugged housing for easy installation and alignment
Instruction/Installation Manual
