Dodge® 129719 DOD129719

Dodge® E-Z-Kleen® mounted ball bearings are ideal for washdown applications. The corrosion-resistant nickel composite plated insert is deployed in either of a polymer or stainless steel housing. The QuadGuard™ triple lip seal with rubberized flinger provides superior protection against contaminants while the patented Maxlife™ cage retains lubricant. Shaft attachment methods include SC set screw, D-LOK® concentric and Grip-Tight® adapter.

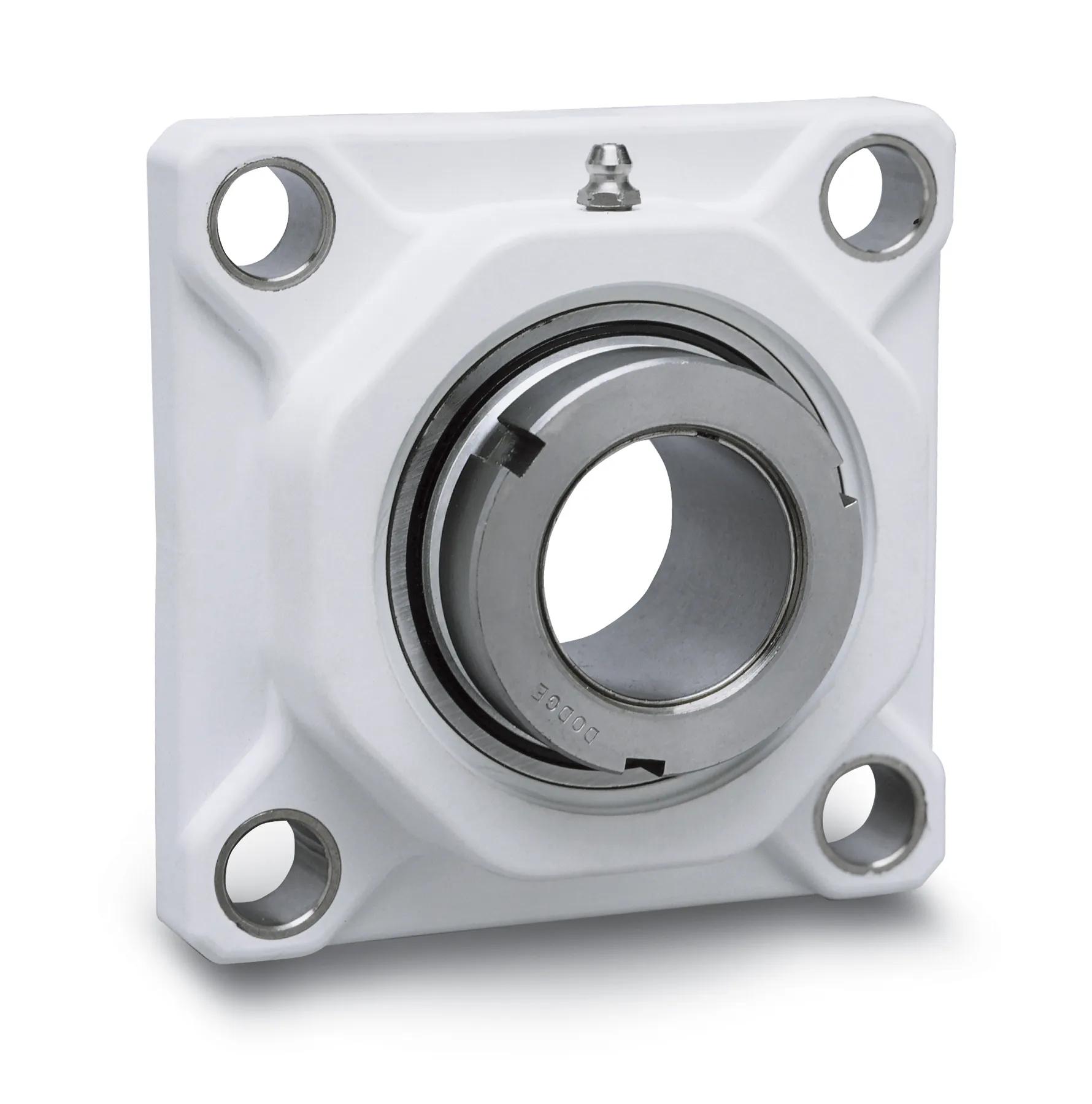

Dodge® E-Z-Kleen® Ball Bearing Unit, Normal Duty Non-Expansion, Series: 210, 1-15/16 in Bore, 4.38 in Bolt Center-to-Center Length, 4-Bolt Base Flange Mounting, 5.62 in Overall Length/Diameter, 2.26 in Overall Depth, 5.62 in Overall Height, Grip-Tight® Adapter Mounted Locking Device, Steel Bearing, 7891 lb Dynamic/5213 lb Static Load, 3840 rpm Maximum, -20 to 225 deg F, Uncoated

• Housings feature a solid base, with no cavities or fillings to trap contaminants
• An active antimicrobial agent in the polymer housing prevents fungal and bacterial growth
• Mechanically retained QuadGuard® sealing system with triple lip seal and rubberized flinger that closes the gap left by conventional all metal flinger designs
• Maxlife™ cage creates grease compartments around each rolling element
• H1 registered food grade lubricant
• Plug included in each E-Z-Kleen® bearing for customer to replace grease fitting if required
• Wide inner ring design
• Thin wall adapter locking
• Polymer housing
• Corrosion resistant insert

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_068337_Manual.pdf
