Dodge® 129635 DOD129635

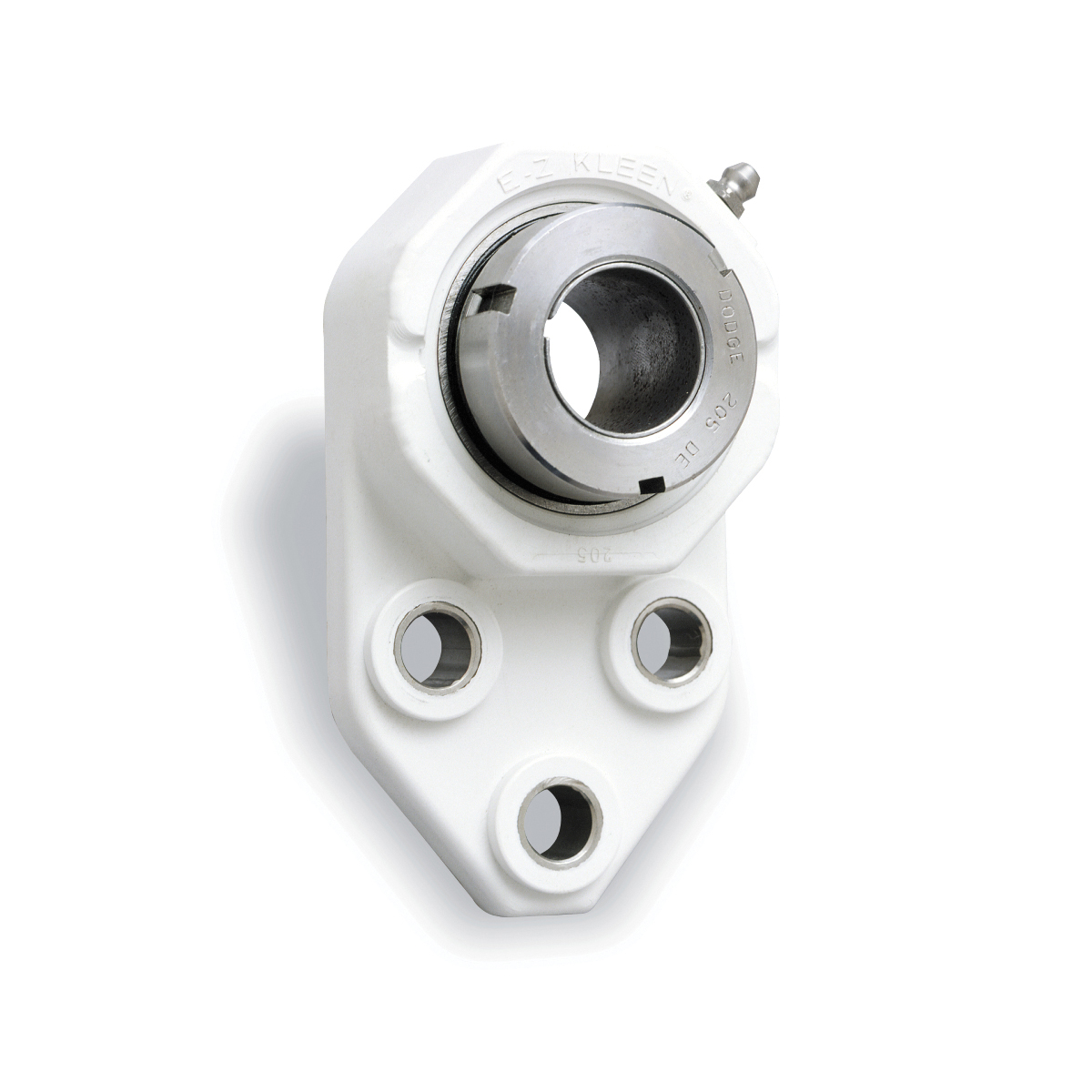

FB-GTEZ-107-PCR Dodge® E-Z-Kleen® 129635 207 Normal Duty Non-Expansion Ball Bearing Unit, 1-7/16 in Dia Bore, 2 in L Bolt Center-to-Center, 3-Bolt Bracket Flange Mount, 3.69 in OAL/Dia
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD129635
- Alt Part Number: FB-GTEZ-107-PCR
- MPN: 129635
- UPC: 782475980475
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® E-Z-Kleen® mounted ball bearings are ideal for washdown applications. The corrosion-resistant nickel composite plated insert is deployed in either of a polymer or stainless steel housing. The QuadGuard™ triple lip seal with rubberized flinger provides superior protection against contaminants while the patented Maxlife™ cage retains lubricant. Shaft attachment methods include SC set screw, D-LOK® concentric and Grip-Tight® adapter.
Dodge® E-Z-Kleen® Ball Bearing Unit, Normal Duty Non-Expansion, Series: 207, 1-7/16 in Bore, 2 in Bolt Center-to-Center Length, 3-Bolt Bracket Flange Mounting, 3.69 in Overall Length/Diameter, 1.86 in Overall Depth, 6.11 in Overall Height, Grip-Tight® Adapter Mounted Locking Device, Steel Bearing, 5759 lb Dynamic/3461 lb Static Load, 5040 rpm Maximum, -20 to 225 deg F, Uncoated
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 2 in |
| Bore Diameter | : | 1-7/16 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 3-Bolt Bracket |
| Load Capacity | : | 5759 lb Dynamic/3461 lb Static |
| Locking Device | : | Grip-Tight® Adapter Mounted |
| Maximum Speed | : | 5040 rpm |
| Overall Depth | : | 1.86 in |
| Overall Height | : | 6.11 in |
| Overall Length/Diameter | : | 3.69 in |
| Series | : | 207 |
| Temperature Rating | : | -20 to 225 deg F |
| Type | : | Normal Duty Non-Expansion |
- Housings feature a solid base, with no cavities or fillings to trap contaminants
- An active antimicrobial agent in the polymer housing prevents fungal and bacterial growth
- Mechanically retained QuadGuard® sealing system with triple lip seal and rubberized flinger that closes the gap left by conventional all metal flinger designs
- Maxlife™ cage creates grease compartments around each rolling element, allowing balls to be constantly in contact with grease and retain grease during high pressure washdown
- H1 registered food grade lubricant
- Plug included in each E-Z-Kleen® bearing for customer to replace grease fitting if required
- Polymer housing
- Corrosion resistant insert
