Dodge® 129309 DOD129309

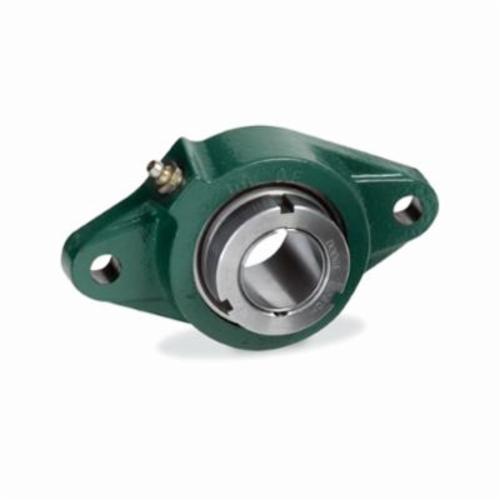

Dodge® 129309 206 Normal Duty Non-Expansion Single Lip Flange Mount Ball Bearing Unit, 1-1/4 in Dia Bore, 4.59 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 5.56 in OAL/Dia
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD129309
- Alt Part Number: F2B-GT-104S
- MPN: 129309
- UPC: 782475886135
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
With its patented pull/push adapter system, fully concentric 360 deg inner ring, and completely interchangeable housing design, the Dodge® Grip Tight® adapter ball bearing is the easy-on/easy-off solution for damage-free shafting, reduced vibration and greater cost/inventory savings.
Dodge® Flange Mount Ball Bearing Unit, Normal Duty Non-Expansion Single Lip, Series: 206, 1-1/4 in Bore, 4.59 in Bolt Center-to-Center Length, 2-Bolt Base Flange Mounting, 5.56 in Overall Length/Diameter, 1.71 in Overall Depth, 3.13 in Overall Height, Grip-Tight® Adapter Mounted Locking Device, Steel Bearing, Nitrile Rubber Seal, 4368 lb Dynamic/2538 lb Static Load, 11000 rpm Maximum, 225 to 400 deg F, Uncoated
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 4.59 in |
| Bore Diameter | : | 1-1/4 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 2-Bolt Base |
| Load Capacity | : | 4368 lb Dynamic/2538 lb Static |
| Locking Device | : | Grip-Tight® Adapter Mounted |
| Maximum Speed | : | 11000 rpm |
| Overall Depth | : | 1.71 in |
| Overall Height | : | 3.13 in |
| Overall Length/Diameter | : | 5.56 in |
| Seal Material | : | Nitrile Rubber |
| Series | : | 206 |
| Temperature Rating | : | 225 to 400 deg F |
| Type | : | Normal Duty Non-Expansion Single Lip |
- Wide inner ring design
- Thin wall adapter locking
