Dodge® 129247 DOD129247

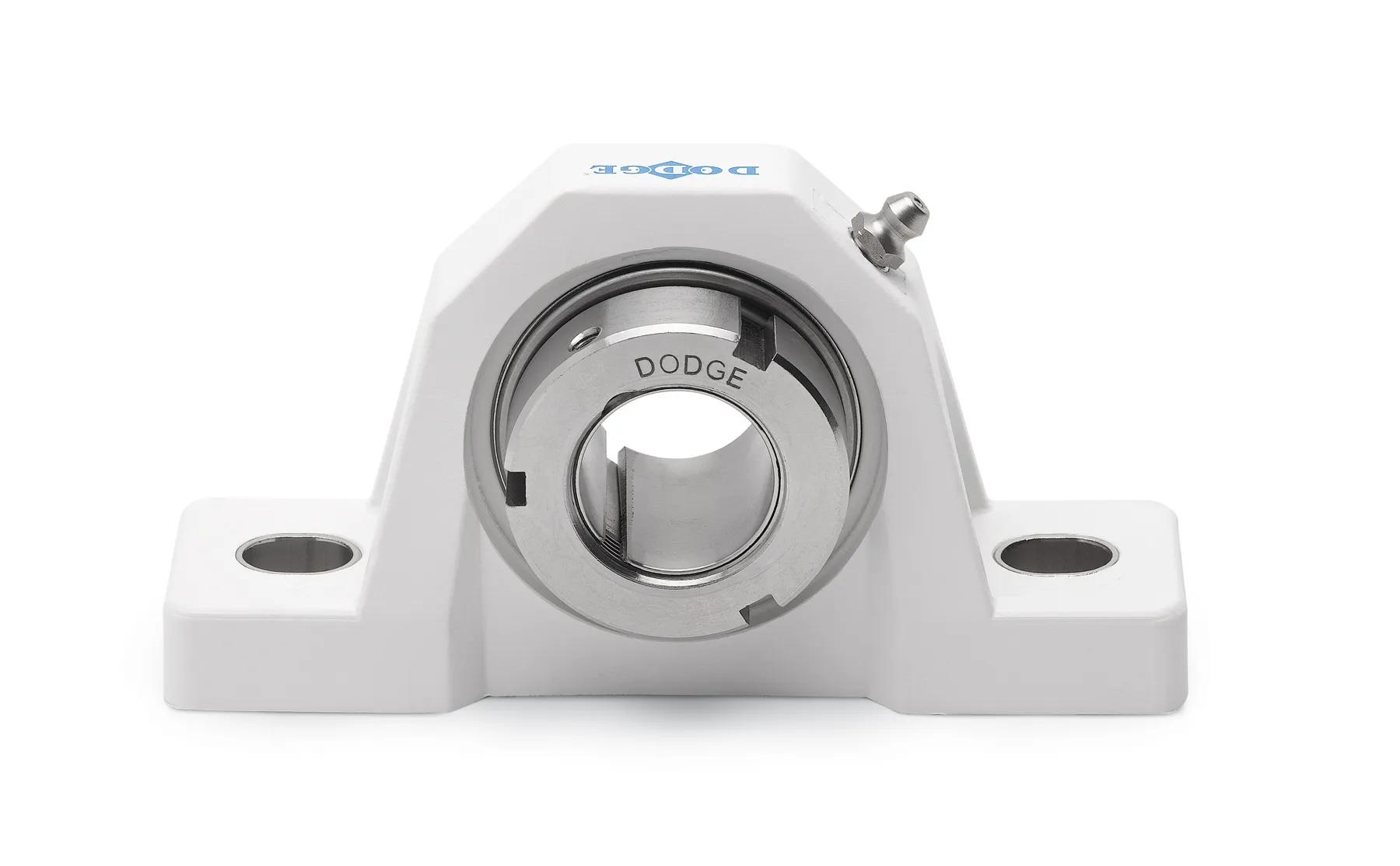

Dodge® E-Z-Kleen® 129247 205 Normal Duty Pillow Block Ball Bearing Unit With Insert, 25 mm Dia Bore, 100.6 to 106.7 mm L Bolt Center-to-Center, 36.5 mm Base to Bore Centerline, 139.2 mm OAL x 72.6 mm OAH, Alternate Part Number: P2B-GTEZ-25M-PCR
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD129247
- Alt Part Number: P2B-GTEZ-25M-PCR
- MPN: 129247
- UPC: 782475997107
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® E-Z-Kleen® mounted ball bearings are ideal for washdown applications. The corrosion-resistant nickel composite plated insert is deployed in either of a polymer or stainless steel housing. The QuadGuard™ triple lip seal with rubberized flinger provides superior protection against contaminants while the patented Maxlife™ cage retains lubricant. Shaft attachment methods include SC setscrew, D-LOK® concentric and Grip-Tight® adapter.
Dodge® E-Z-Kleen® Pillow Block Ball Bearing Unit, Normal Duty, Series: 205, 25 mm Bore, 100.6 to 106.7 mm Bolt Center-to-Center Length, 36.5 mm Base to Bore Centerline, 139.2 mm Overall Length, 37.1 mm Overall Width, 72.6 mm Overall Height, Two-Bolt Base Mounting, Round Bore, 37.6 mm Base Width, Grip-Tight® Adapter Mounted Locking Device, Triple Lip Seal, Non-Expansion (Fixed) Expansion, 3146 lb Dynamic/1769 lb Static Load, -20 to 225 deg F, 7200 rpm Maximum, Polymer, Uncoated
| Base Width | : | 37.6 mm |
| Base to Bore Centerline | : | 36.5 mm |
| Bolt Center-to-Center Length | : | 100.6 to 106.7 mm |
| Bore Diameter | : | 25 mm |
| Bore Type | : | Round |
| Expansion Type | : | Non-Expansion (Fixed) |
| Finish | : | Uncoated |
| Load Capacity | : | 3146 lb Dynamic/1769 lb Static |
| Locking Device | : | Grip-Tight® Adapter Mounted |
| Material | : | Polymer |
| Maximum Speed | : | 7200 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 72.6 mm |
| Overall Length | : | 139.2 mm |
| Overall Width | : | 37.1 mm |
| Seal Type | : | Triple Lip |
| Series | : | 205 |
| Temperature Rating | : | -20 to 225 deg F |
| Type | : | Normal Duty |
- Wide inner ring
- Push/pull adapter mount system provides easy on/easy off installation and removal
- Housings feature a solid base, with no cavities or fillings to trap contaminants
- Mechanically retained QuadGuard™ triple lip seal features a rubberized flinger that closes the gap left by conventional all metal flinger designs
- Maxlife™ cage creates grease compartments around each rolling element, allowing balls to be constantly in contact with grease and retain grease during high pressure washdown
- H1 registered food grade lubricant
- Corrosion resistant insert
Specification Sheet
