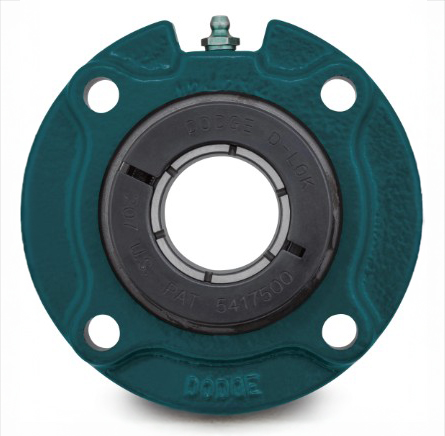

Dodge® 128814 DOD128814
FC-DL-110L Dodge® 128814 209 Normal Duty Non-Expansion Single Lip Flanged Cartridge Ball Bearing Unit, 1-5/8 in Dia Bore, 5.13 in L Bolt Center-to-Center, 5.13 in Dia Bolt Circle, 4-Bolt Base/Piloted Flange Mount, 6.13 in OAL/Dia
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD128814
- Alt Part Number: FC-DL-110L
- MPN: 128814
- UPC: 782475894734
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Flanged Cartridge Ball Bearing Unit, Normal Duty Non-Expansion Single Lip, Series: 209, 1-5/8 in Bore Dia, 5.13 in Bolt Center-to-Center Length, 5.13 in Bolt Circle, 4-Bolt Base/Piloted Flange Mounting Type, 6.13 in Overall Length/Diameter, 2 in Overall Depth, D-LOK® Concentric Clamp Collar Locking Device, Steel Bearing, Nitrile Rubber Seal, 7891 lb Dynamic/4906 lb Static, 5000 rpm Maximum, 225 to 400 deg F, Powder Coated
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 5.13 in |
| Bolt Circle Diameter | : | 5.13 in |
| Bore Diameter | : | 1-5/8 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Base/Piloted |
| Load Capacity | : | 7891 lb Dynamic/4906 lb Static |
| Locking Device | : | D-LOK® Concentric Clamp Collar |
| Maximum Speed | : | 5000 rpm |
| Overall Depth | : | 2 in |
| Overall Length/Diameter | : | 6.13 in |
| Seal Material | : | Nitrile Rubber |
| Series | : | 209 |
| Temperature Rating | : | 225 to 400 deg F |
| Type | : | Normal Duty Non-Expansion Single Lip |
- Precision-hardened and honed inner and outer rings
- New rugged housing design
- Normal duty wide inner ring
- Dual guard positive contact seal including rubberized flingers
- Stronger and flexible ball retainer
- Simplified anti-rotation device
- Wide inner ring design
