Dodge® 127586 DOD127586

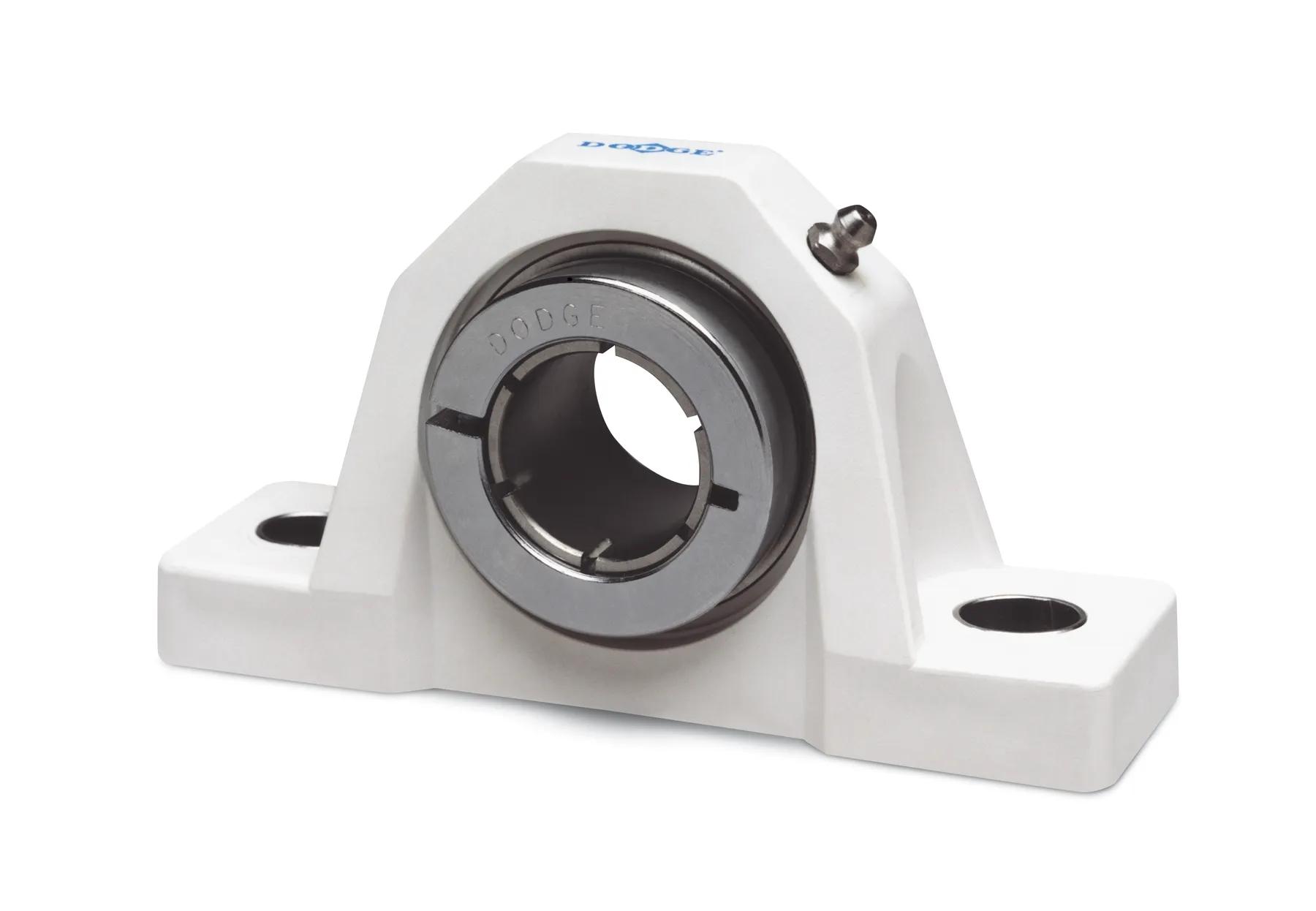

Dodge® E-Z-Kleen® 127586 210 Normal Duty Pillow Block Ball Bearing Unit With Insert, 1-15/16 in Dia Bore, 6 to 6.56 in L Bolt Center-to-Center, 2-1/4 in Base to Bore Centerline, 8.06 in OAL x 4.56 in OAH
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD127586
- Alt Part Number: P2B-DLEZ-115-PCR
- MPN: 127586
- UPC: 782475986231
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® E-Z-Kleen® mounted ball bearings are ideal for washdown applications. The corrosion-resistant nickel composite plated insert is deployed in either of a polymer or stainless steel housing. The QuadGuard™ triple lip seal with rubberized flinger provides superior protection against contaminants while the patented Maxlife™ cage retains lubricant. Shaft attachment methods include SC setscrew, D-LOK® concentric and Grip-Tight® adapter.
Dodge® E-Z-Kleen® Pillow Block Ball Bearing Unit, Normal Duty, Series: 210, 1-15/16 in Bore, 6 to 6.56 in Bolt Center-to-Center Length, 2-1/4 in Base to Bore Centerline, 8.06 in Overall Length, 2.01 in Overall Width, 4.56 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2.36 in Base Width, D-LOK® Concentric Clamp Collar Locking Device, Triple Lip Seal, Non-Expansion (Fixed), 7891 lb Dynamic/5213 lb Static Load, -20 to 225 deg F, 3600 rpm Maximum, Polymer, Uncoated
| Base Width | : | 2.36 in |
| Base to Bore Centerline | : | 2-1/4 in |
| Bolt Center-to-Center Length | : | 6 to 6.56 in |
| Bore Diameter | : | 1-15/16 in |
| Bore Type | : | Round |
| Expansion Type | : | Non-Expansion (Fixed) |
| Finish | : | Uncoated |
| Load Capacity | : | 7891 lb Dynamic/5213 lb Static |
| Locking Device | : | D-LOK® Concentric Clamp Collar |
| Material | : | Polymer |
| Maximum Speed | : | 3600 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 4.56 in |
| Overall Length | : | 8.06 in |
| Overall Width | : | 2.01 in |
| Seal Type | : | Triple Lip |
| Series | : | 210 |
| Temperature Rating | : | -20 to 225 deg F |
| Type | : | Normal Duty |
- Wide inner ring
- Housings feature a solid base, with no cavities or fillings to trap contaminants
- Mechanically retained QuadGuard™ triple lip seal features a rubberized flinger that closes the gap left by conventional all metal flinger designs
- Maxlife™ cage creates grease compartments around each rolling element, allowing balls to be constantly in contact with grease and retain grease during high pressure washdown
- H1 registered food grade lubricant
- Corrosion resistant insert
