Dodge® 126454 DOD126454

For concentric grip on the shaft and less vibration at higher speeds, specify Dodge® D-LOK® normal- or medium-duty mounted ball bearings. These unique, concentric collar bearings are engineered with features that assure you superior holding power with improved concentricity. Even at high speeds, the D-LOK® bearing grips the shaft tighter and more uniformly for less vibration.

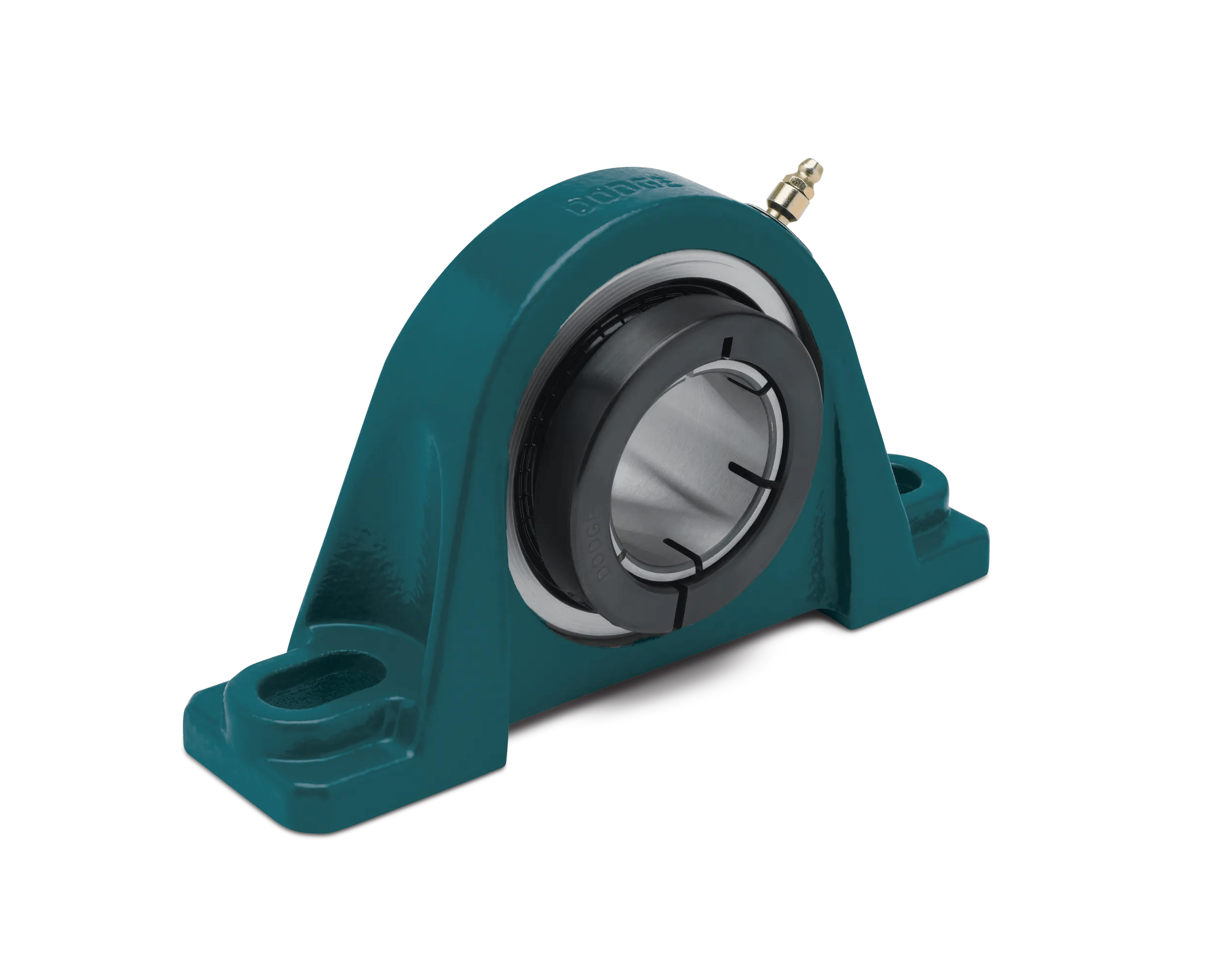

Dodge® Pillow Block Ball Bearing Unit, Normal Duty, Series: 212, 2-7/16 in Bore, 7-1/2 to 8-1/2 in Bolt Center-to-Center Length, 3 in Base to Bore Centerline, 10-3/4 in Overall Length, 2.38 in Overall Width, 6.09 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2.69 in Base Width, D-LOK® Concentric Clamp Collar Locking Device, Single Lip Seal, Expansion Expansion, 11791 lb Dynamic/8100 lb Static Load, 3500 rpm Maximum, Steel, Powder Coated

• Precision-hardened and honed inner and outer rings
• New rugged housing design
• Normal duty wide inner ring
• D-LOK® locking mechanism
• Dual guard positive contact seal including rubberized flingers
• Stronger and flexible ball retainer
• Simplified anti-rotation device
• Electrostatically applied epoxy paint

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e6cfaa0fa7f4e96449a5d26fb61eb939916e00380043f791b56cc25f93109eb2.pdf
