Dodge® 126416 DOD126416

For more than 70 years, Dodge® has been talking to mounted bearing users and listening to their needs. This experience led to design of the optimum mounted ball bearings. The result is the Dodge® SXR line, the most current eccentric collar mounted ball bearing design on the market, provides the user unmatched quality and true total value. The Dodge® eccentric ball bearing is manufactured at the state-of-the-art Dodge® bearing plant in Rogersville, Tennessee - an ISO 9002 certified plant.

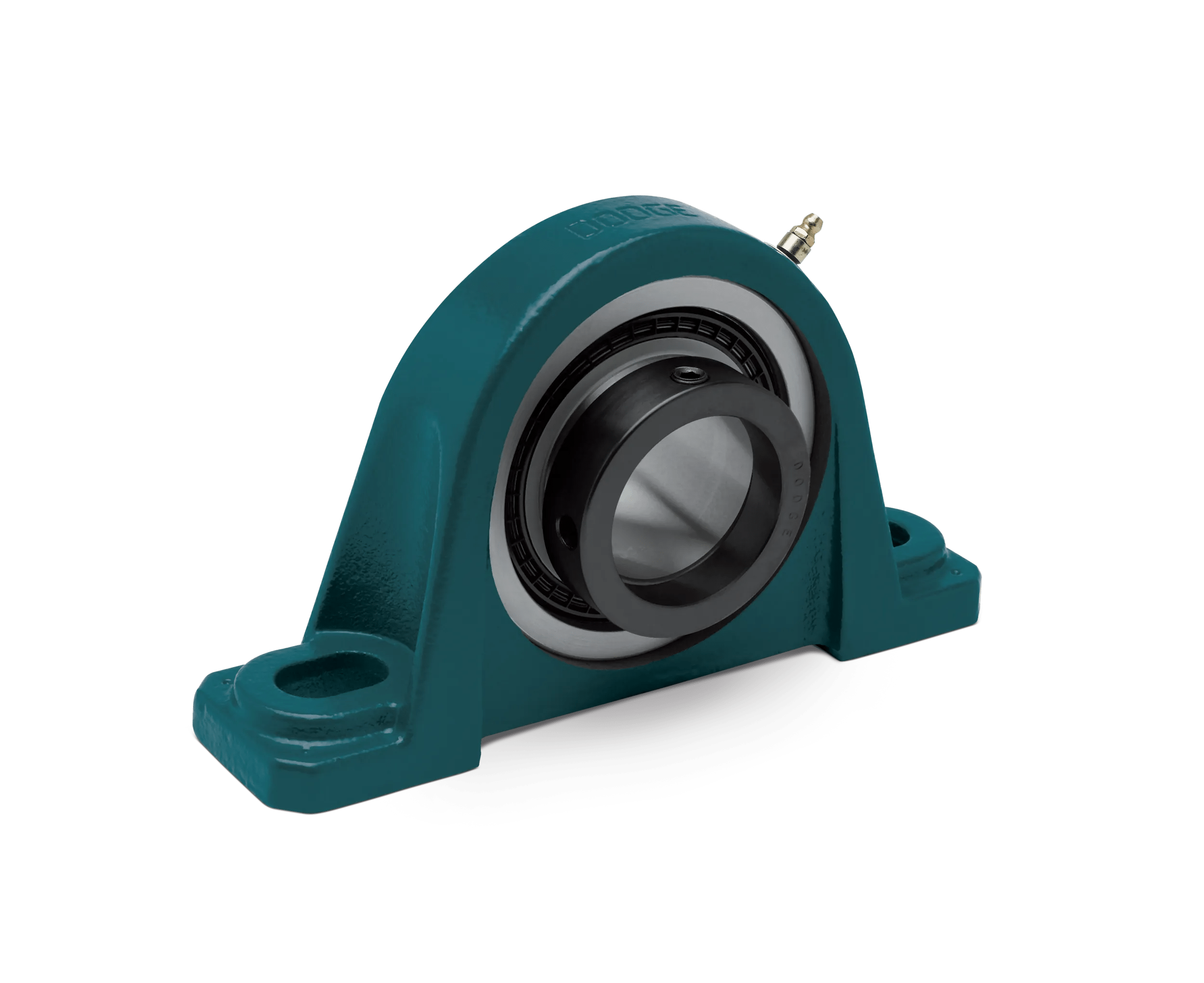

Dodge® Pillow Block Ball Bearing Unit, Normal Duty, Series: 207, 1-7/16 in Bore, 5.18 to 5.88 in Bolt Center-to-Center Length, 2.13 in Base to Bore Centerline, 7-1/4 in Overall Length, 1.95 in Overall Width, 4.19 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1.93 in Base Width, Eccentric Collar Locking Device, Single Lip Seal, Expansion, 5759 lb Dynamic/3461 lb Static Load, 5500 rpm Maximum, Cast Iron, Powder Coated

• Wide inner ring
• Precision hardened and honed
• DualGuard™ seal with rubberized flinger
• Stronger and flexible ball cage
• Simplified anti-rotation device
• High backing height
