Dodge® 125824 DOD125824
  1. pin-int

Dodge® 125824 DOD125824

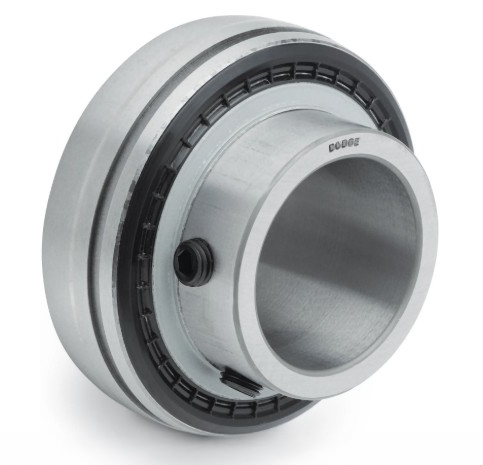

INS-SCM-25M Dodge® 125824 206 Medium Duty Set Screw Ball Bearing, 25 mm Dia Bore, 62 mm OD, 35.3 mm W, 18993 lb Dynamic/ 10013 lb Static Load

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD125824
  • Alt Part Number: INS-SCM-25M
  • MPN: 125824
  • UPC: 782475657537
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Dodge® Set Screw Ball Bearing, Medium Duty, Series: 206, 25 mm Bore Dia, 62 mm Outside Dia, 35.3 mm Width, 18993 lb Dynamic/ 10013 lb Static, Cast Iron Cage, 6500 rpm Maximum, Uncoated

Bore Diameter      :      25 mm
Cage Material      :      Cast Iron
Finish      :      Uncoated
Load Capacity      :      18993 lb Dynamic/ 10013 lb Static
Maximum Speed      :      6500 rpm
Outside Diameter      :      62 mm
Series      :      206
Type      :      Medium Duty
Width      :      35.3 mm
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Dodge_126178_Catalog.pdf
