Dodge® 119767 DOD119767

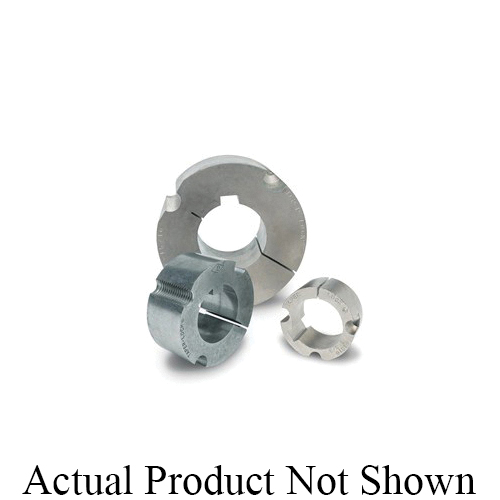

Dodge® 4535 X 2-7/16 NK DI (119767) Reborable Taper Lock Bushing, 2-7/16 in Dia Bore, 6.38 in Dia Barrel, 3-1/2 in OAL, Ductile Iron
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD119767
- Alt Part Number: 4535 X 2-7/16 NK DI
- MPN: 119767
- UPC: 782475424269
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® 4535 X 2-7/16 NK DI (119767) is a Reborable taper lock bushing. Key specifications include bore: 2-7/16 in, overall length: 3-1/2 in, hub diameter: 9-1/2 in, and torque rating: 110000 in-lb. Dodge® Taper-Lock® bushings are flangeless for clean, compact application. They are engineered with an 8 deg taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble.
Dodge® 4535 X 2-7/16 NK DI (119767) Taper Lock Bushing, Reborable, 2-7/16 in Bore Dia, 6.38 in Barrel Dia, 9-1/2 in Hub Dia, 8 deg Taper, 6.13 in Bolt Circle, 3 Bolt Holes, 3/4 x 2 in Screw, 110000 in-lb, 3-1/2 in Overall Length, Ductile Iron
| Barrel Diameter | : | 6.38 in |
| Bolt Circle Diameter | : | 6.13 in |
| Bore Diameter | : | 2-7/16 in |
| Hub Diameter | : | 9-1/2 in |
| Material | : | Ductile Iron |
| Number of Bolt Holes | : | 3 |
| Overall Length | : | 3-1/2 in |
| Screw Size | : | 3/4 x 2 in |
| Taper | : | 8 deg |
| Torque Rating | : | 110000 in-lb |
| Type | : | Reborable |
- Size 4535 bushing
- Clean and compact design
- Easy On/Off operation
- 8 deg taper grips tight, holds tight, runs true and no wobble
- Flush mounting and no protruding parts
- Without keyway
