Dodge® 119729 DOD119729
Dodge® 119729 Stock Bore Taper Lock Bushing, 3-5/8 in Dia Bore, 5 in Dia Barrel, 2-1/2 in OAL, Alternate Part Number: 3525 X 3-5/8-KW
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD119729
- MPN: 119729
- UPC: 782476460938
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:

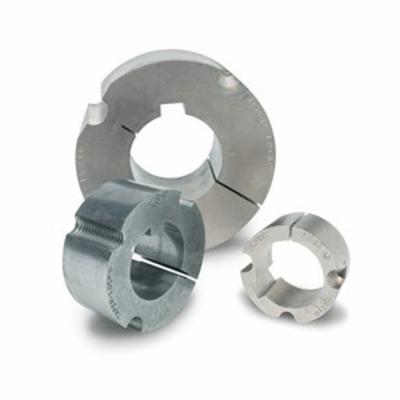

Dodge® Taper-Lock® bushings are flangeless for clean, compact application. They are engineered with an 8 deg taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble.
Dodge® Taper Lock Bushing, Stock Bore, 3-5/8 in Bore Dia, 5 in Barrel Dia, 7 in (Cast Iron)/6-1/2 in (Steel) Hub Dia, 8 deg Taper, 4.83 in Bolt Circle, 3 Bolt Holes, 1/2 x 1-1/2 in Screw, 44800 in-lb, 2-1/2 in Overall Length, 7/8 x 5/8 in Keyway
| Barrel Diameter | : | 5 in |
| Bolt Circle Diameter | : | 4.83 in |
| Bore Diameter | : | 3-5/8 in |
| Hub Diameter | : | 7 in (Cast Iron)/6-1/2 in (Steel) |
| Keyway Size | : | 7/8 x 5/8 in |
| Number of Bolt Holes | : | 3 |
| Overall Length | : | 2-1/2 in |
| Screw Size | : | 1/2 x 1-1/2 in |
| Taper | : | 8 deg |
| Torque Rating | : | 44800 in-lb |
| Type | : | Stock Bore |
- Size 3525 bushing
- Clean and compact design
- Easy On/Off operation
- 8 deg taper grips tight, holds tight, runs true and no wobble
- Flush mounting and no protruding parts
