Dodge® 119596 DOD119596

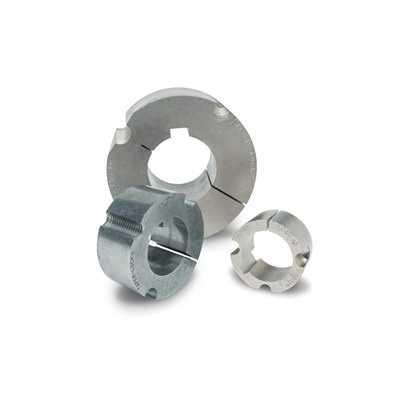

Dodge® 119596 Stock Bore Taper Lock Bushing With Standard Keyway, 35 mm Dia Bore, 2 in Dia Barrel, 1 in OAL, Steel
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD119596
- Alt Part Number: 1310 X 35MM-KW
- MPN: 119596
- UPC: 782475537662
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Taper-Lock® bushings are flangeless for clean, compact application. They are engineered with an 8 deg taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble.
Dodge® Taper Lock Bushing, Stock Bore, 35 mm Bore Dia, 2 in Barrel Dia, 3 in Hub Dia, 8 deg Taper, 1.88 in Bolt Circle, 2 Bolt Holes, 3/8 x 5/8 in Screw, 3850 in-lb, 1 in Overall Length, 0.3953 x 0.3953 in Keyway, Steel
| Barrel Diameter | : | 2 in |
| Bolt Circle Diameter | : | 1.88 in |
| Bore Diameter | : | 35 mm |
| Hub Diameter | : | 3 in |
| Keyway Size | : | 0.3953 x 0.3953 in |
| Material | : | Steel |
| Number of Bolt Holes | : | 2 |
| Overall Length | : | 1 in |
| Screw Size | : | 3/8 x 5/8 in |
| Taper | : | 8 deg |
| Torque Rating | : | 3850 in-lb |
| Type | : | Stock Bore |
- Size 1310 bushing
- Clean and compact design
- Easy On/Off operation
- 8 deg taper grips tight, holds tight, runs true and no wobble
- Flush mounting and no protruding parts
Instruction/Installation Manual
