Dodge® 119144 DOD119144

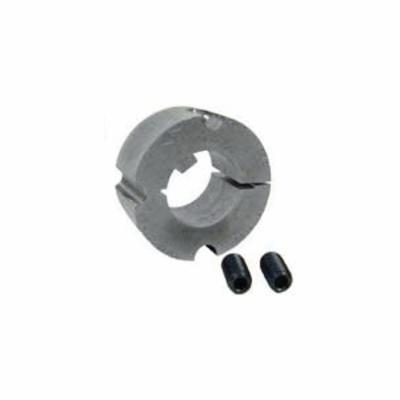

Dodge® 119144 Taper Lock Bushing, 1-5/8 in Dia Bore, 3.38 in Dia Barrel, 1-3/4 in OAL, Sintered Steel
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD119144
- Alt Part Number: 2517 X 1-5/8 IK
- MPN: 119144
- UPC: 782475633999
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Taper-Lock® bushings are flangeless for clean, compact application. They are engineered with an 8 deg taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble.
Dodge® Taper Lock Bushing, 1-5/8 in Bore Dia, 3.38 in Barrel Dia, 4.38 in Hub Dia, 8 deg Taper, 3-1/4 in Bolt Circle, 2 Bolt Holes, 1/2 x 1 in Screw, 11600 in-lb, 1-3/4 in Overall Length, 3/8 x 3/16 in Keyway, Sintered Steel
| Barrel Diameter | : | 3.38 in |
| Bolt Circle Diameter | : | 3-1/4 in |
| Bore Diameter | : | 1-5/8 in |
| Hub Diameter | : | 4.38 in |
| Keyway Size | : | 3/8 x 3/16 in |
| Material | : | Sintered Steel |
| Number of Bolt Holes | : | 2 |
| Overall Length | : | 1-3/4 in |
| Screw Size | : | 1/2 x 1 in |
| Taper | : | 8 deg |
| Torque Rating | : | 11600 in-lb |
- Size 2517 bushing
- Clean and compact design
- Easy On/Off operation
- 8 deg taper grips tight, holds tight, runs true and no wobble
- Flush mounting and no protruding parts
Instruction/Installation Manual
