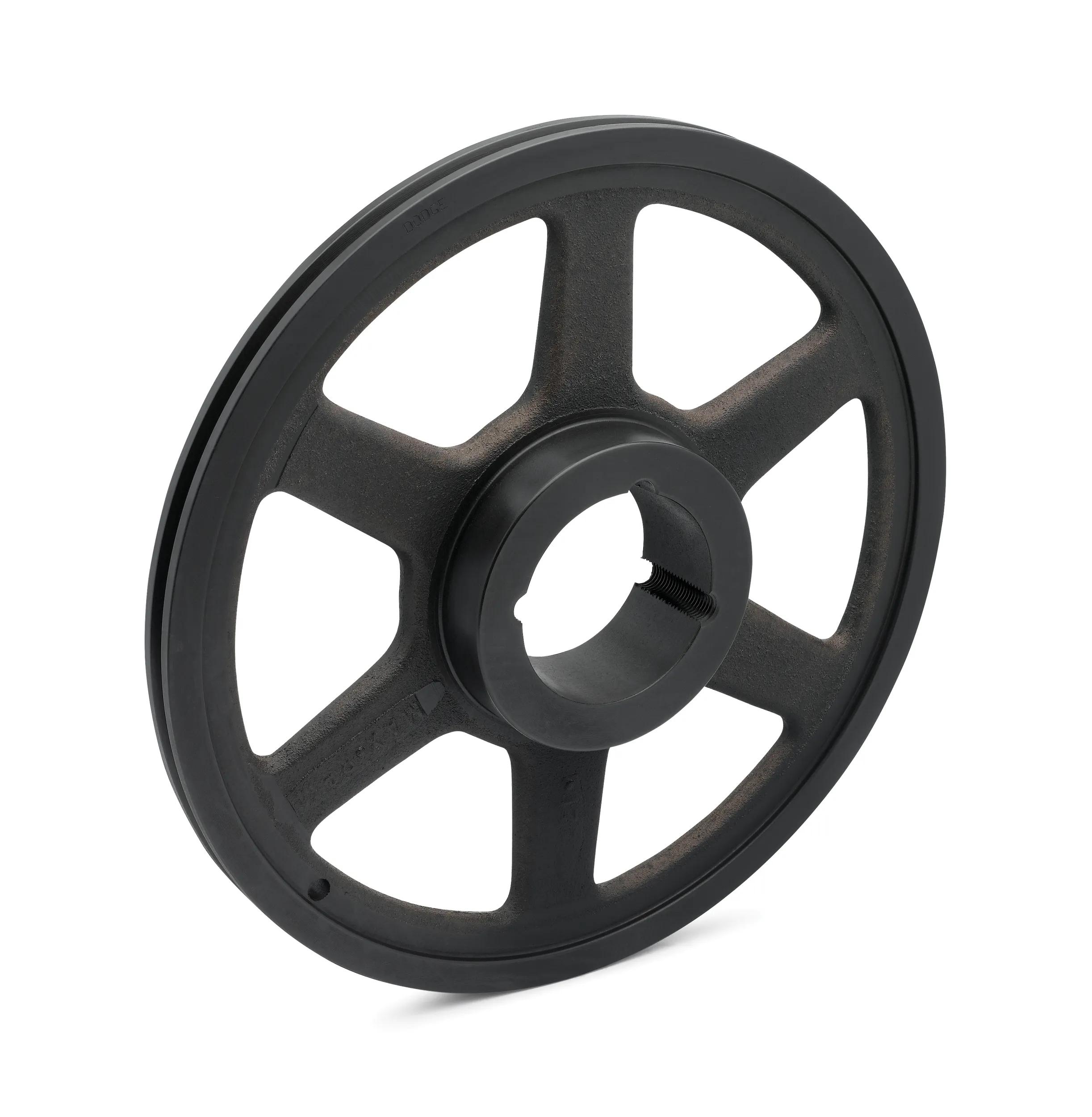

Dodge® 118343 DOD118343
Dodge® 118343 Single Groove Sheave, Taper-Lock® Bore, 1/2 to 2-11/16 in Dia Bore, 16.35 in OD, 15.98 in (A)/16.36 in (B) Dia Pitch, 1.13 in W Face, Alternate Part Number: 1B16.0-2517
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD118343
- Alt Part Number: 1B16.0-2517
- MPN: 118343
- UPC: 782475526673
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Single Groove Sheave, Taper-Lock® Bore, 1/2 to 2-11/16 in Bore, 16.35 in OD, 15.98 in (A)/16.36 in (B) Pitch Diameter, 1.13 in Face Width, 2517 Bushing, For Use With: AB Cross Section V-Belts, Cast Iron
| Bore Diameter | : | 1/2 to 2-11/16 in |
| Bore Type | : | Taper-Lock® |
| Bushing Type | : | 2517 |
| Face Width | : | 1.13 in |
| Material | : | Cast Iron |
| Outside Diameter | : | 16.35 in |
| Pitch Diameter | : | 15.98 in (A)/16.36 in (B) |
| Suitable For Use With | : | AB Cross Section V-Belts |
- Isolates shock loads and vibration
- Misalignment capability
- Drive ratios of 6:1 or more possible
- Low maintenance
- No lubrication required
- Quiet operation motors, etc. are normally at a higher db level than V-drives
- Efficiency of 95% is typical
