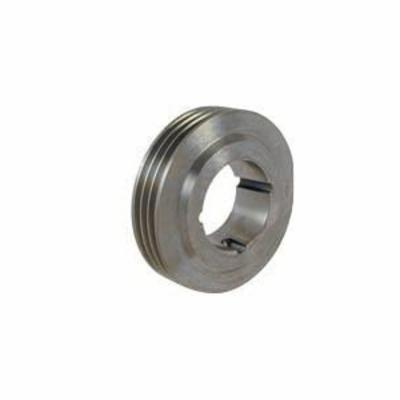

Dodge® 118233 DOD118233
Dodge® 118233 Type A1 Sheave, 1/2 to 1-11/16 in Taper-Lock® Bore, 4.55 in OD, 3 Grooves, 4.18/4.56 in Dia Pitch, 2-1/2 in W Face
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD118233
- Alt Part Number: 3B4.2-1610
- MPN: 118233
- UPC: 782475095292
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Sheaves are manufactured in Dodge® plants under strict quality control assurances. Precision machining meets or exceeds joint extended belt life. Dodge® manufactures all sheaves in plants certified to ISO 9002 quality standards.
Dodge® Sheave, Type A1, Taper-Lock® Bore, 1/2 to 1-11/16 in Bore, 4.55 in OD, 4.18/4.56 in Pitch Diameter, 3 Grooves, 2-1/2 in Face Width, 1610 Bushing, For Use With: AB Cross Section V-Belts, Cast Iron
| Bore Diameter | : | 1/2 to 1-11/16 in |
| Bore Type | : | Taper-Lock® |
| Bushing Type | : | 1610 |
| Face Width | : | 2-1/2 in |
| Material | : | Cast Iron |
| Number of Grooves | : | 3 |
| Outside Diameter | : | 4.55 in |
| Pitch Diameter | : | 4.18/4.56 in |
| Suitable For Use With | : | AB Cross Section V-Belts |
| Type | : | Type A1 |
- Isolates shock loads and vibration
- Minor misalignment capability
- Drive ratios of 6:1 or more possible
- Low maintenance
- No lubrication required
- Quiet operation
- Typically 95% efficiency can be obtained
Instruction/Installation Manual
