Dodge® 117471 DOD117471

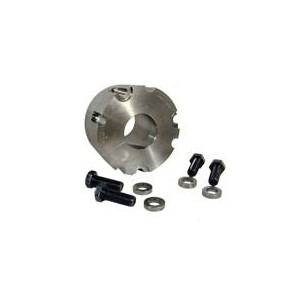

Dodge® 117471 Taper Lock Bushing, 3-7/16 in Dia Bore, 9-1/4 in Dia Barrel, 5 in OAL, Ductile Iron
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD117471
- Alt Part Number: 6050 X 3 7/16-DUCT NKS
- MPN: 117471
- UPC: 782475093953
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Taper-Lock® bushings are flangeless for clean, compact application. They are engineered with an 8 deg taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble.
Dodge® Taper Lock Bushing, 3-7/16 in Bore Dia, 9-1/4 in Barrel Dia, 15-1/2 in Hub Dia, 8 deg Taper, 9 in Bolt Circle, 3 Bolt Holes, 1-1/4 x 3-1/2 in Screw, 282000 in-lb, 5 in Overall Length, Ductile Iron
| Barrel Diameter | : | 9-1/4 in |
| Bolt Circle Diameter | : | 9 in |
| Bore Diameter | : | 3-7/16 in |
| Hub Diameter | : | 15-1/2 in |
| Material | : | Ductile Iron |
| Number of Bolt Holes | : | 3 |
| Overall Length | : | 5 in |
| Screw Size | : | 1-1/4 x 3-1/2 in |
| Taper | : | 8 deg |
| Torque Rating | : | 282000 in-lb |
- Size 6050 bushing
- Clean and compact design
- Easy On/Off operation
- 8 deg taper grips tight, holds tight, runs true and no wobble
- Flush mounting and no protruding parts
- Without keyway
Instruction/Installation Manual
