Dodge® 117452 DOD117452

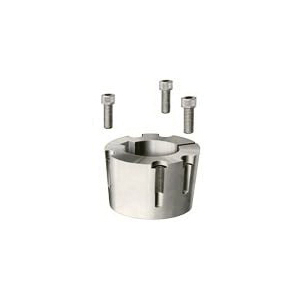

Dodge® 117452 Stock Bore Taper Lock Bushing With Standard Keyway, 3-3/8 in Dia Bore, 7 in Dia Barrel, 5 in OAL, Iron
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD117452
- Alt Part Number: 5050 X 3-3/8-KW
- MPN: 117452
- UPC: 782475093762
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Taper-Lock® bushings are flangeless for clean, compact application. They are engineered with an 8 deg taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble.
Dodge® Taper Lock Bushing, Stock Bore, 3-3/8 in Bore Dia, 7 in Barrel Dia, 10-1/2 in Hub Dia, 8 deg Taper, 6.72 in Bolt Circle, 3 Bolt Holes, 7/8 x 2-1/4 in Screw, 126000 in-lb, 5 in Overall Length, 7/8 x 7/8 in Keyway, Iron
| Barrel Diameter | : | 7 in |
| Bolt Circle Diameter | : | 6.72 in |
| Bore Diameter | : | 3-3/8 in |
| Hub Diameter | : | 10-1/2 in |
| Keyway Size | : | 7/8 x 7/8 in |
| Material | : | Iron |
| Number of Bolt Holes | : | 3 |
| Overall Length | : | 5 in |
| Screw Size | : | 7/8 x 2-1/4 in |
| Taper | : | 8 deg |
| Torque Rating | : | 126000 in-lb |
| Type | : | Stock Bore |
- Size 5050 bushing
- Clean and compact design
- Easy On/Off operation
- 8 deg taper grips tight, holds tight, runs true and no wobble
- Flush mounting and no protruding parts
Instruction/Installation Manual
