Dodge® 117377 DOD117377

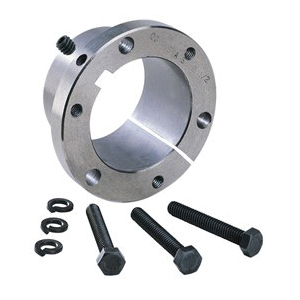

Dodge® 117377 Type JA Stock Reborable QD Bushing, 14 mm Dia Bore, 35.1 mm Dia Barrel, 50.8 mm Dia Flange, 25.4 mm OAL, Ductile Iron
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD117377
- Alt Part Number: JA-14MM, 5X2.3MM KW METRIC HDW
- MPN: 117377
- UPC: 782475000166
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® 117377 is a Type JA Stock Reborable qd bushing. Key specifications include bore: 14 mm, overall length: 25.4 mm, hub diameter: 99.8 mm, and flange diameter: 50.8 mm. Dodge® QD® bushings have a flanged design and feature a 4 deg taper with conventional or reverse mounting. They are stocked in popular finished bore sizes and minimum plain bore for custom reboring.
Dodge® QD Bushing, Type JA Stock Reborable, 14 mm Bore, 35.1 mm Barrel Diameter, 99.8 mm Diameter Hub, 50.8 mm Diameter Flange, 7.9 mm Flange Thickness, 3 Bolt Holes, M5 x 0.8 Screw, 113 N-m Torque, 25.4 mm Overall Length, 5 mm W x 2.3 mm D Keyway, Ductile Iron
| Barrel Diameter | : | 35.1 mm |
| Bore Diameter | : | 14 mm |
| Flange Diameter | : | 50.8 mm |
| Flange Thickness | : | 7.9 mm |
| Hub Diameter | : | 99.8 mm |
| Keyway Size | : | 5 mm W x 2.3 mm D |
| Material | : | Ductile Iron |
| Number of Bolt Holes | : | 3 |
| Overall Length | : | 25.4 mm |
| Screw Size | : | M5 x 0.8 |
| Torque Rating | : | 113 N-m |
| Type | : | Type JA Stock Reborable |
- Dodge® QD® style bushings stocked in popular finish bore sizes and minimum plain bore, for custom reboring
- Dodge® metric QD® bushings supplied with metric hex-head cap screws and lock washers
- Stock reborable bushings available for custom reboring
- Can be used with Dodge® HTD sprockets for conventional mounting only
Specification Sheet
