Dodge® 115325 DOD115325
  1. pin-int

Dodge® 115325 DOD115325

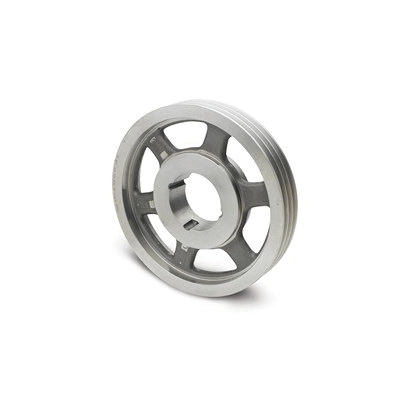

Dodge® 115325 Type A Arm Multiple Groove Sheave, 7/8 to 3-1/4 in Taper-Lock® Bore, 18.4 in OD, 2 Grooves, 18.4 in Dia Pitch, 2.37 in W Face, Alternate Part Number: 2C18.0-3020

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD115325
  • MPN: 115325
  • UPC: 782475559435
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

All Baldor Dodge® V-drive sheaves are manufactured to ISO 9002 quality standards with precision machining that meets or exceeds joint RMA/MPTA industry standards for smooth operation and extended belt life. This provides low economical costs per hp transmitted due to shock load and vibration isolation creating clean, quiet operation.

Dodge® Multiple Groove Sheave, Type A Arm, Taper-Lock® Bore, 7/8 to 3-1/4 in Bore, 18.4 in OD, 18.4 in Pitch Diameter, 2 Grooves, 2.37 in Face Width, 3020 Bushing, For Use With: C-Cross Section Classical V-Belts, Gray Iron

Bore Diameter      :      7/8 to 3-1/4 in
Bore Type      :      Taper-Lock®
Bushing Type      :      3020
Face Width      :      2.37 in
Material      :      Gray Iron
Number of Grooves      :      2
Outside Diameter      :      18.4 in
Pitch Diameter      :      18.4 in
Suitable For Use With      :      C-Cross Section Classical V-Belts
Type      :      Type A Arm
  • Isolates vibration, cushions shock loads
  • Minor misalignment capability
  • Drive ratios of 6:1 or more possible
  • Low maintenance
  • No lubrication required
  • Efficiency of 93% is typical
  • Without Keyway
