Dodge® 115089 DOD115089
  1. pin-int

Dodge® 115089 DOD115089

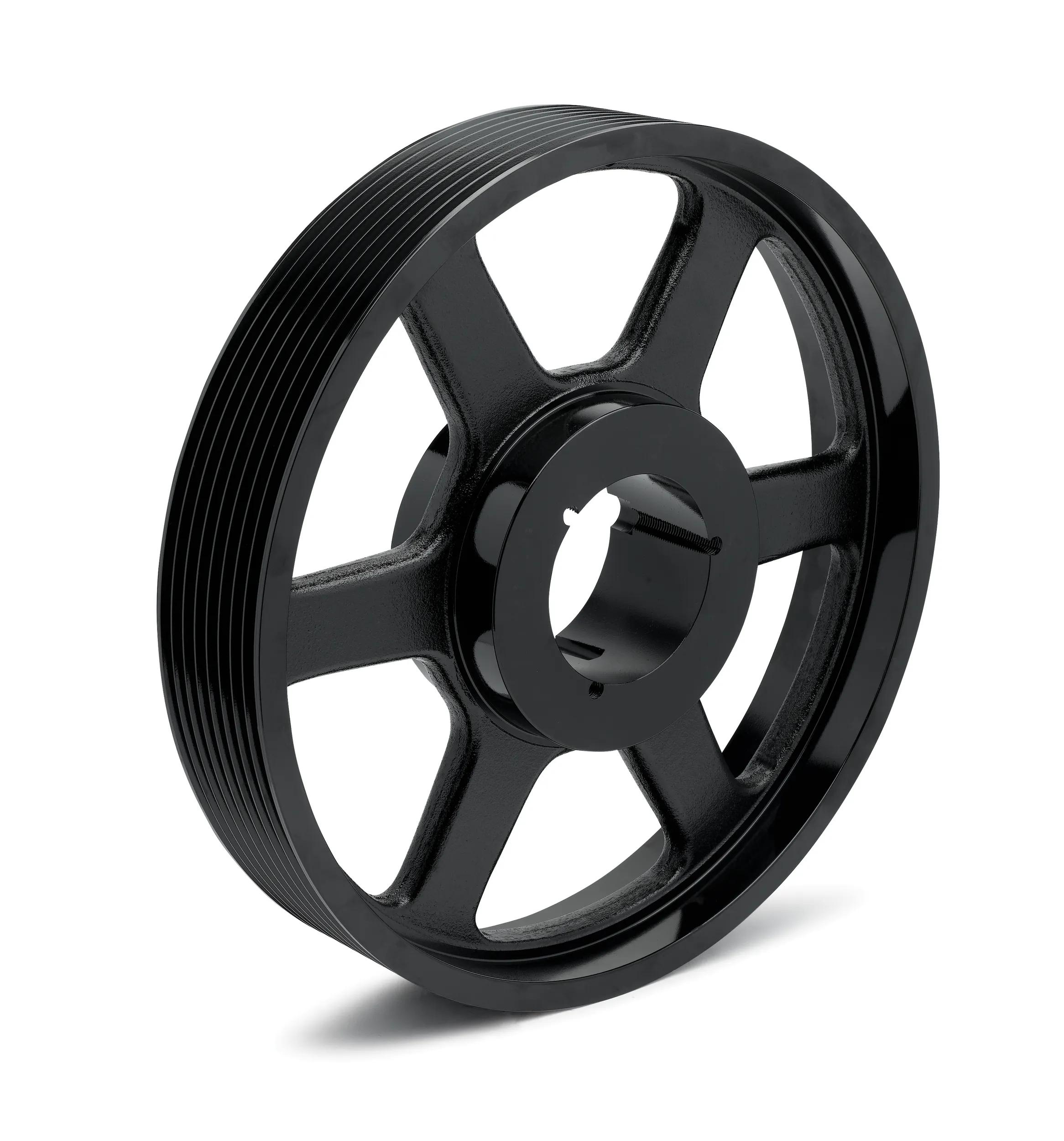

Dodge® 115089 Type A3 Sheave, 1-7/16 to 4-7/16 in Taper-Lock® Bore, 20.4 in OD, 8 Grooves, 20.4 in Dia Pitch, 8.37 in W Face, Alternate Part Number: 8C20.0-4040

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD115089
  • Alt Part Number: 8C20.0-4040
  • MPN: 115089
  • UPC: 782475090280
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sheaves are manufactured in Dodge® plants under strict quality control assurances. Precision machining meets or exceeds joint extended belt life. Dodge® manufactures all sheaves in plants certified to ISO 9002 quality standards.

Dodge® Sheave, Type A3, Taper-Lock® Bore, 1-7/16 to 4-7/16 in Bore, 20.4 in OD, 20.4 in Pitch Diameter, 8 Grooves, 8.37 in Face Width, 4040 Bushing, For Use With: C-Cross Section V-Belts, Cast Iron, Gray

Bore Diameter      :      1-7/16 to 4-7/16 in
Bore Type      :      Taper-Lock®
Bushing Type      :      4040
Face Width      :      8.37 in
Finish      :      Gray
Material      :      Cast Iron
Number of Grooves      :      8
Outside Diameter      :      20.4 in
Pitch Diameter      :      20.4 in
Suitable For Use With      :      C-Cross Section V-Belts
Type      :      Type A3
  • Isolates shock loads and vibration
  • Minor misalignment capability
  • Drive ratios of 6:1 or more possible
  • 1100 design hp at 1180 rpm/800 design hp at 1770 rpm stock drive selection
  • Low maintenance
  • No lubrication required
  • Typically 95% efficiency can be obtained
