Dodge® 114920 DOD114929
  1. pin-int

Dodge® 114920 DOD114929

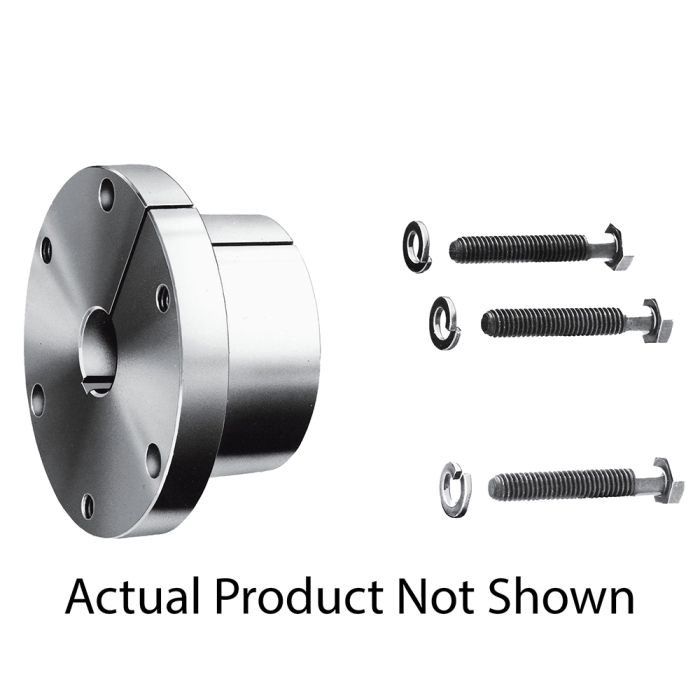

Dodge® 114920 QD Bushing, 150 mm Dia Bore, 8-1/4 in Dia Barrel, 11-3/4 in Dia Flange, 9.38 in OAL, Cast Iron

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD114929
  • Alt Part Number: PX150MM
  • MPN: 114920
  • UPC: 782477297472
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® QD Bushing, 150 mm Bore Dia, 8-1/4 in Barrel Dia, 14 in Hub Dia, 10 in Bolt Circle, 11-3/4 in Flange Dia, 1-3/4 in Flange Thickness, 4 Bolt Holes, 1-8 x 9-1/2 in Screw, 250000 in-lb, For Use With: HTD Sprockets, 9.38 in Overall Length, Cast Iron

Barrel Diameter      :      8-1/4 in
Bolt Circle Diameter      :      10 in
Bore Diameter      :      150 mm
Flange Diameter      :      11-3/4 in
Flange Thickness      :      1-3/4 in
Hub Diameter      :      14 in
Material      :      Cast Iron
Number of Bolt Holes      :      4
Overall Length      :      9.38 in
Screw Size      :      1-8 x 9-1/2 in
Suitable For Use With      :      HTD Sprockets
Torque Rating      :      250000 in-lb
  • Size P bushing
  • Flanged design
  • 4 deg angled taper
  • Easy On/Off operation
  • Manufactured precisely to industry standards
  • Conventional or reverse mounting
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Dodge_114920_Specification_Sheet.pdf
