Dodge® 114860 DOD114860
  1. pin-int

Dodge® 114860 DOD114860

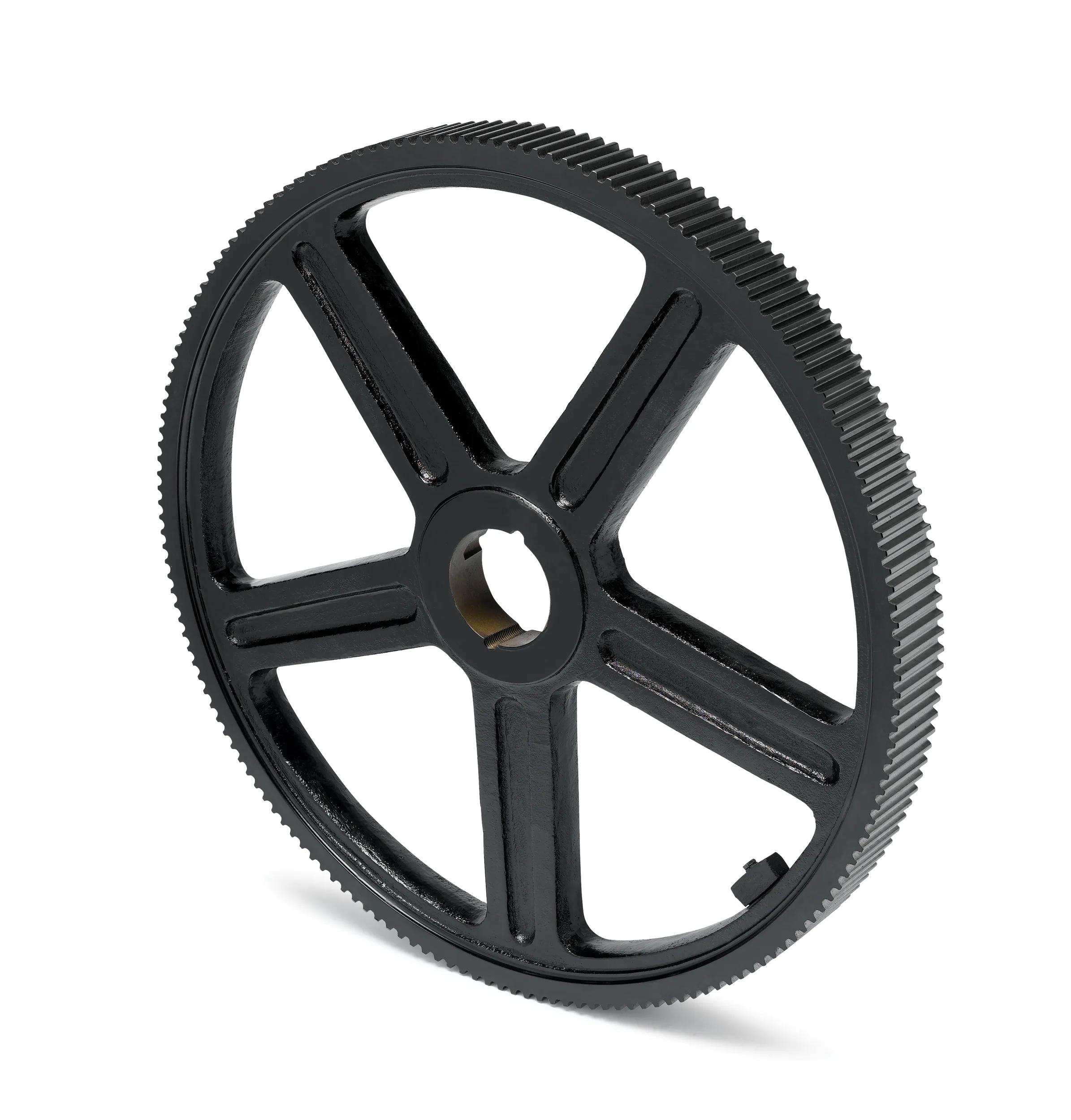

P168-14M-55-3020 Dodge® 114860 Arm Type A Belt Sprocket, 7/8 to 3-1/4 in Taper-Lock® Bore, 29.265 in OD, 29.475 in Dia Pitch, 2-3/4 in W Face, Alternate Part Number: P168-14M-55-3020

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD114860
  • Alt Part Number: P168-14M-55-3020
  • MPN: 114860
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Belt Sprocket, Arm Type A, Taper-Lock® Bore, 7/8 to 3-1/4 in Bore Dia, 29.265 in Outside Dia, 29.475 in, 14 mm Pitch, 2-3/4 in Face Width, 3020 Bushing, 2-3/4 in Overall Length, For Use With: 55 mm W Type HT Belt

Bore Diameter      :      7/8 to 3-1/4 in
Bore Type      :      Taper-Lock®
Bushing Type      :      3020
Face Width      :      2-3/4 in
Outside Diameter      :      29.265 in
Overall Length      :      2-3/4 in
Pitch Diameter      :      29.475 in
Pitch      :      14 mm
Suitable For Use With      :      55 mm W Type HT Belt
Type      :      Arm Type A
  • Torque rated shaft gripping strength to meet the higher demands of the 200% rating of HT200 belt
  • Compact save shaft space with compact taper lock design
  • Reduce overhung load compact design allows closer mounting to motor or reducer bearings
  • Improves bearing life
  • Reduces maintenance costs
  • 168 teeth
