Dodge® 113863 DOD113863
  1. pin-int

Dodge® 113863 DOD113863

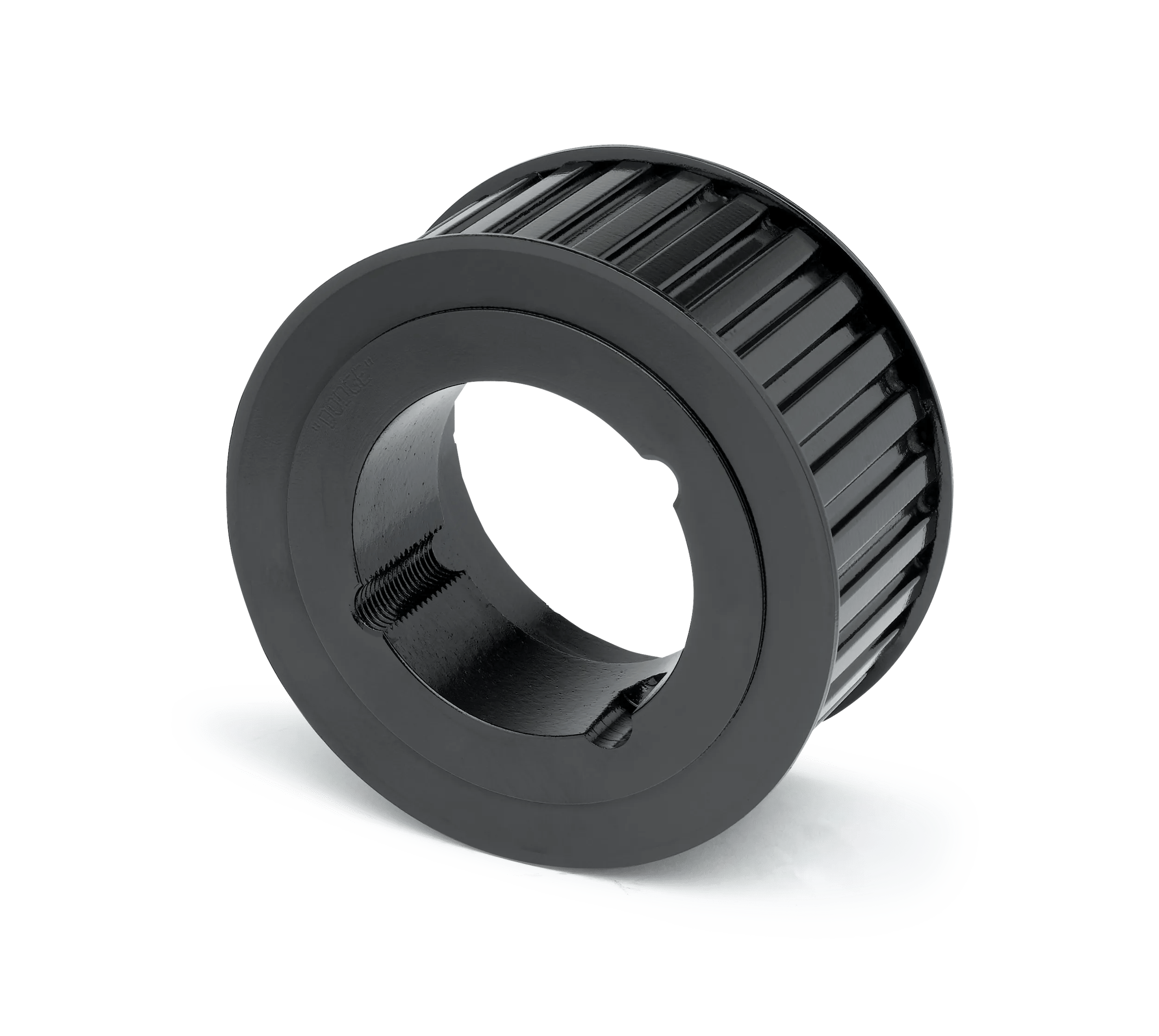

TL28XH300-3535 Dodge® 113863 Dyna-Sync Type KF1 Timing Belt Pulley, 1-3/16 to 3-1/2 in Taper-Lock® Bore, 7.689 in OD, 28 Grooves, 7.799 in Dia Pitch, 3.63 in W Face

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD113863
  • Alt Part Number: TL28XH300-3535
  • MPN: 113863
  • UPC: 782475088997
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® TL28XH300-3535 (113863) is a Dyna-Sync Type KF1 timing pulley. Key specifications include bore: 1-3/16 to 3-1/2 in, bore type: Taper-Lock®, bushing type: 3535, and outside diameter: 7.689 in.

Dodge® TL28XH300-3535 (113863) Timing Belt Pulley, Dyna-Sync Type KF1, Taper-Lock® Bore, 1-3/16 to 3-1/2 in Bore Dia, 7.689 in Outside Dia, 7.799 in, 28 Grooves, 7/8 in Pitch, 3.63 in Face Width, 8.27 in Flange Dia, 0.13 in Hub Projection, 3535 Bushing

Bore Diameter      :      1-3/16 to 3-1/2 in
Bore Type      :      Taper-Lock®
Bushing Type      :      3535
Face Width      :      3.63 in
Flange Diameter      :      8.27 in
Hub Projection      :      0.13 in
Number of Grooves      :      28
Outside Diameter      :      7.689 in
Pitch Diameter      :      7.799 in
Pitch      :      7/8 in
Type      :      Dyna-Sync Type KF1
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Dodge_113122_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Dodge_113863_Specification_Sheet.pdf
