Dodge® 113782 DOD113782
  1. pin-int

Dodge® 113782 DOD113782

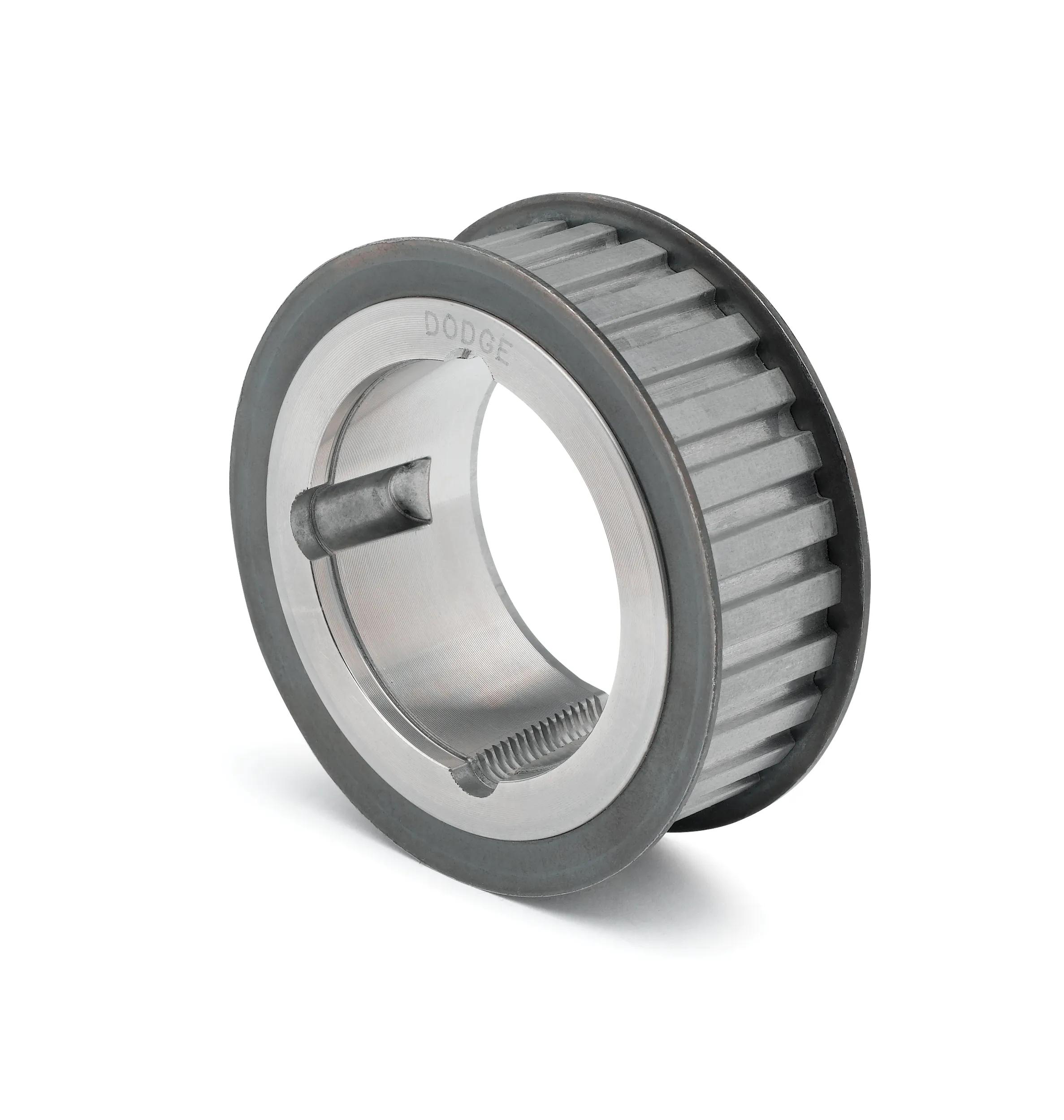

TL48H300-3020 Dodge® 113782 Block Type KF-1 Timing Belt Pulley, 7/8 to 3-1/4 in Taper-Lock® Bore, 7.585 in OD, 7.639 in Dia Pitch, 3.38 in W Face

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD113782
  • Alt Part Number: TL48H300-3020
  • MPN: 113782
  • UPC: 782475088812
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Dyna-Sync® Timing Belt Pulley, Block Type KF-1, Taper-Lock® Bore, 7/8 to 3-1/4 in Bore Dia, 7.585 in Outside Dia, 7.639 in, 1/2 in Pitch, 3.38 in Face Width, 8.02 in Flange Dia, 0.69 in Hub Projection, 3020 Bushing, 3.38 in Overall Length, For Use With: 3 in W Type H Belt

Bore Diameter      :      7/8 to 3-1/4 in
Bore Type      :      Taper-Lock®
Bushing Type      :      3020
Face Width      :      3.38 in
Flange Diameter      :      8.02 in
Hub Projection      :      0.69 in
Outside Diameter      :      7.585 in
Overall Length      :      3.38 in
Pitch Diameter      :      7.639 in
Pitch      :      1/2 in
Suitable For Use With      :      3 in W Type H Belt
Type      :      Block Type KF-1
  • Clean, compact Taper-Lock® design
  • Easy on/off operation
  • Flange design standard on drive size
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_113021_Specification_Sheet.pdf
