Dodge® 113585 DOD113585
  1. pin-int

Dodge® 113585 DOD113585

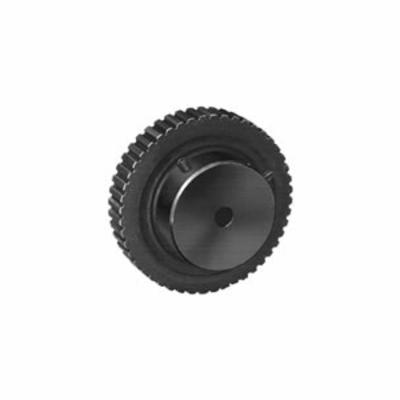

TL84L100-2517 Dodge® 113585 Dyna-Sync Type C1 Timing Belt Pulley, 1/2 to 2-11/16 in Taper-Lock® Bore, 9.997 in OD, 84 Grooves, 10.027 in Dia Pitch, 1-1/4 in W Face

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD113585
  • Alt Part Number: TL84L100-2517
  • MPN: 113585
  • UPC: 782475576364
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Timing Belt Pulley, Dyna-Sync Type C1, Taper-Lock® Bore, 1/2 to 2-11/16 in Bore Dia, 9.997 in Outside Dia, 10.027 in, 84 Grooves, 3/8 in Pitch, 1-1/4 in Face Width, 4.88 in Hub Dia, 0.55 in Hub Projection, 2517 Bushing

Bore Diameter      :      1/2 to 2-11/16 in
Bore Type      :      Taper-Lock®
Bushing Type      :      2517
Face Width      :      1-1/4 in
Hub Diameter      :      4.88 in
Hub Projection      :      0.55 in
Number of Grooves      :      84
Outside Diameter      :      9.997 in
Pitch Diameter      :      10.027 in
Pitch      :      3/8 in
Type      :      Dyna-Sync Type C1
  • Synchronized and no-slip transmission
  • No lubrication required
  • Approximately 98% efficiency can obtained
  • Low maintenance
  • Virtually no backlash
  • Constant linear velocity
  • 8.5:1 drive ratio
  • Easy On/Off operation
  • Flange design standard on drive size
