Dodge® 112478 DOD112478

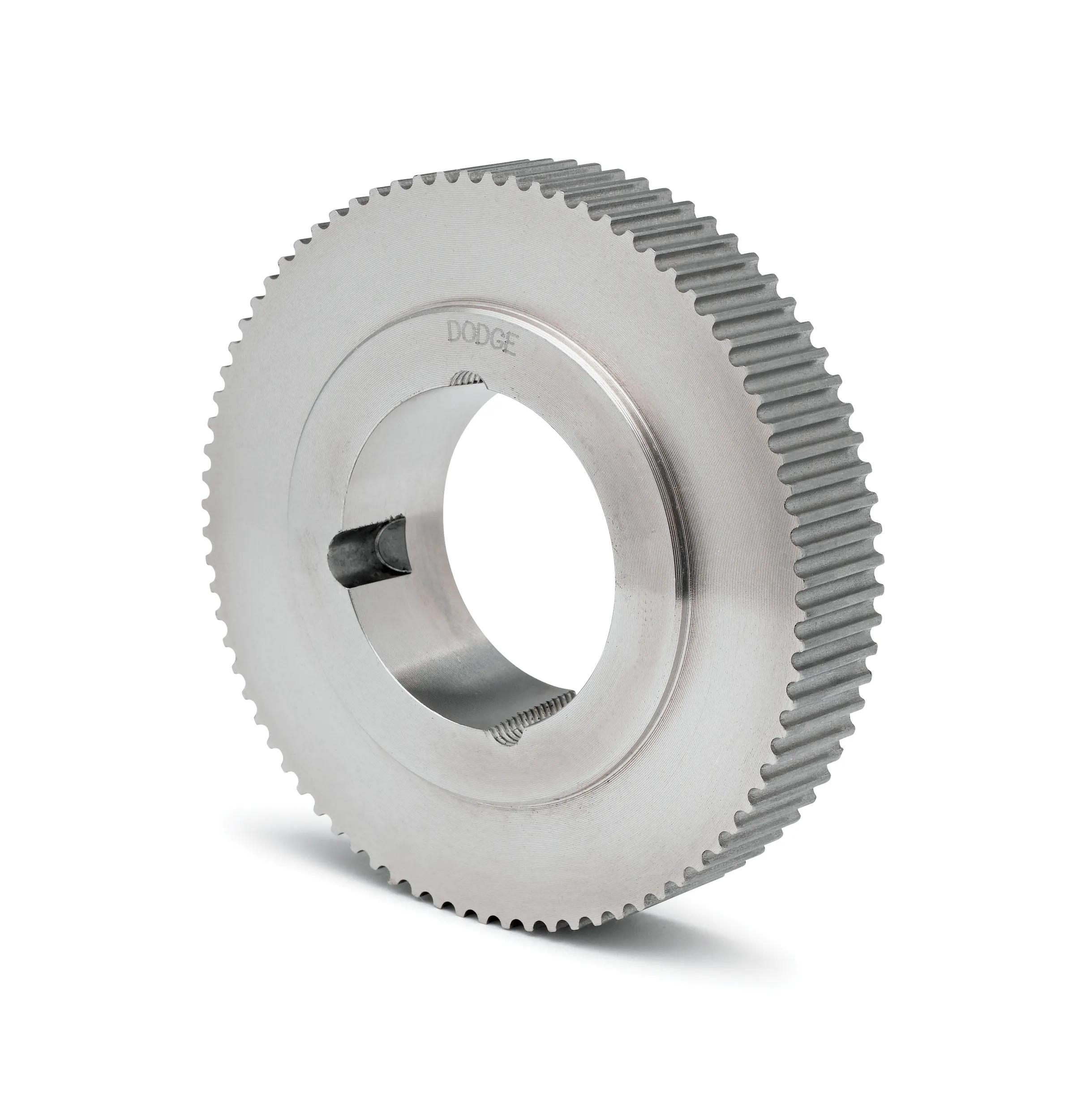

P80-5M-15-1610 Dodge® 112478 HT250 Type B1 High Torque Belt Sprocket, 1/2 to 1-11/16 in Taper-Lock® Bore, 4.968 in OD, 80 Grooves, 5.013 in Dia Pitch, 0.89 in W Face, Alternate Part Number: P80-5M-15-1610
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD112478
- Alt Part Number: P80-5M-15-1610
- MPN: 112478
- UPC: 782475733101
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® High Torque Belt Sprocket, Type B1, Series: HT250, Taper-Lock® Bore, 1/2 to 1-11/16 in Bore Dia, 4.968 in Outside Dia, 5.013 in, 80 Grooves, 5 mm Pitch, 0.89 in Face Width, 0.11 in Hub Projection, 1610 Bushing
| Bore Diameter | : | 1/2 to 1-11/16 in |
| Bore Type | : | Taper-Lock® |
| Bushing Type | : | 1610 |
| Face Width | : | 0.89 in |
| Hub Projection | : | 0.11 in |
| Number of Grooves | : | 80 |
| Outside Diameter | : | 4.968 in |
| Pitch Diameter | : | 5.0129999999999999 in |
| Pitch | : | 5 mm |
| Series | : | HT250 |
| Type | : | Type B1 |
- Positive and non-slip drive
- No lubrication required
- Non-stretch
- Corrosion resistant
- Abrasion resistant
- Virtually no backlash
- Long life
- Low maintenance
