Dodge® 112182 DOD112182

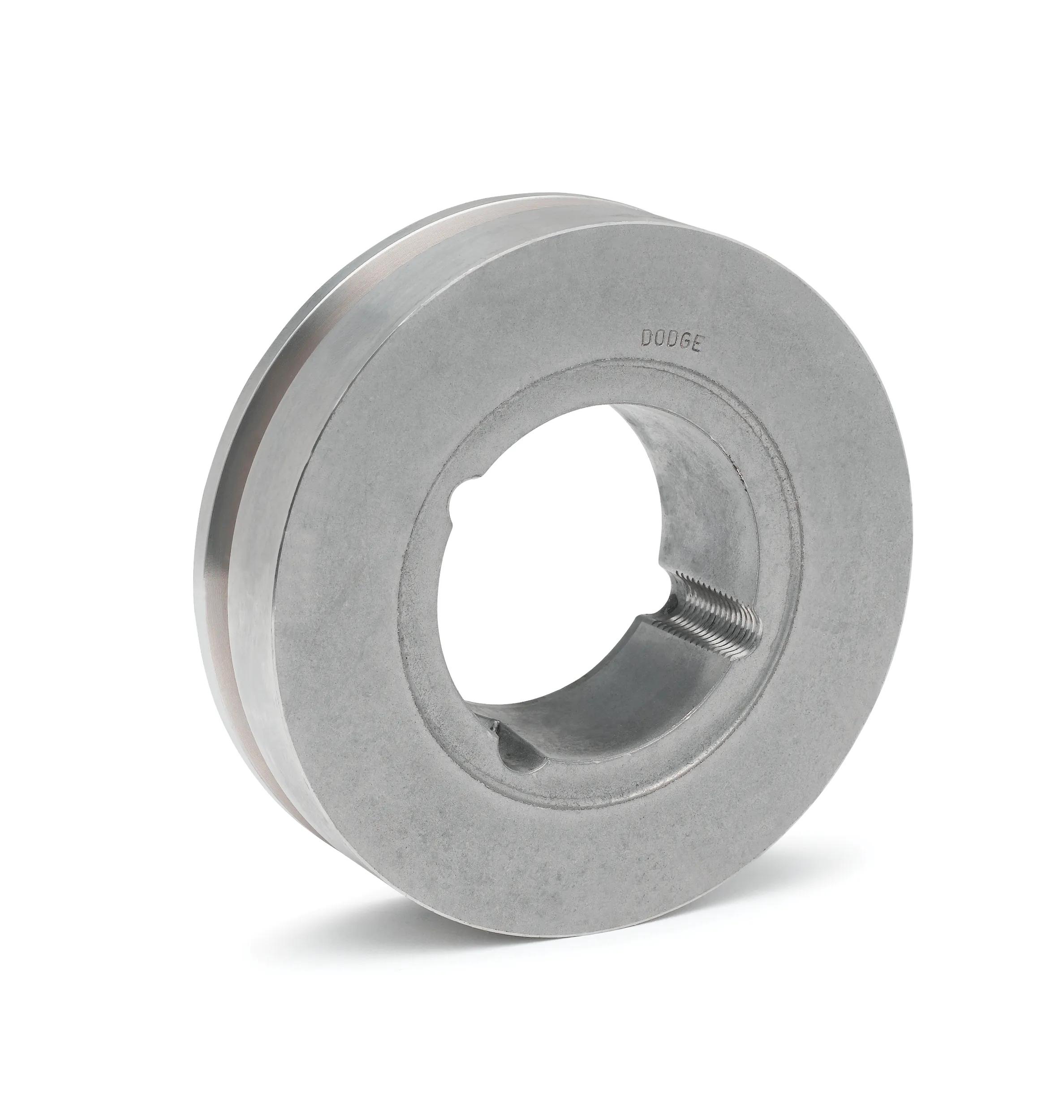

Dodge® 112182 Single Groove Sheave, Taper-Lock® Bore, 1/2 to 1-11/16 in Dia Bore, 5.6 in OD, 5.55 in Dia Pitch, 1.06 in W Face, Alternate Part Number: 1-3V5.6-1610
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD112182
- Alt Part Number: 1-3V5.6-1610
- MPN: 112182
- UPC: 782475087204
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® Single Groove Sheave, Taper-Lock® Bore, 1/2 to 1-11/16 in Bore, 5.6 in OD, 5.55 in Pitch Diameter, 1.06 in Face Width, 1610 Bushing, 1.06 in Overall Length, For Use With: 3V-Cross Section V-Belts, Cast Iron
| Bore Diameter | : | 1/2 to 1-11/16 in |
| Bore Type | : | Taper-Lock® |
| Bushing Type | : | 1610 |
| Face Width | : | 1.06 in |
| Material | : | Cast Iron |
| Outside Diameter | : | 5.6 in |
| Overall Length | : | 1.06 in |
| Pitch Diameter | : | 5.55 in |
| Suitable For Use With | : | 3V-Cross Section V-Belts |
- Isolates shock loads and vibration
- Misalignment capability
- Low maintenance
- No lubrication required
- Quiet operation motors, etc. are normally at a higher db level than V-drives
- Efficiency of 95% is typical
