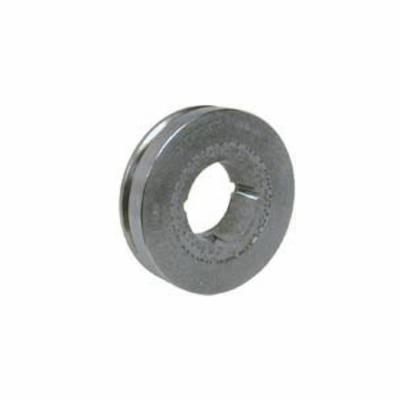

Dodge® 112124 DOD112124

Dodge® 112124 Single Groove Sheave, Taper-Lock® Bore, 1/2 to 1-1/8 in Dia Bore, 2.65 in OD, 2.6 in Dia Pitch, 0.94 in W Face

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD112124
  • Alt Part Number: 1-3V2.65-1108
  • MPN: 112124
  • UPC: 782475086894
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Single Groove Sheave, Taper-Lock® Bore, 1/2 to 1-1/8 in Bore, 2.65 in OD, 2.6 in Pitch Diameter, 0.94 in Face Width, 1108 Bushing, 0.935 in Overall Length, For Use With: 3V-Cross Section V-Belts, Cast Iron

Bore Diameter      :      1/2 to 1-1/8 in
Bore Type      :      Taper-Lock®
Bushing Type      :      1108
Face Width      :      0.94 in
Material      :      Cast Iron
Outside Diameter      :      2.65 in
Overall Length      :      0.935 in
Pitch Diameter      :      2.6 in
Suitable For Use With      :      3V-Cross Section V-Belts
  • Isolates shock loads and vibration
  • Misalignment capability
  • Low maintenance
  • No lubrication required
  • Quiet operation motors, etc. are normally at a higher db level than V-drives
  • Efficiency of 95% is typical
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_107156_Manual.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_112010_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dodge_112124_Specification_Sheet.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a222b989c2f11d0da239108a420481c4af108ff479ffe26d947841492bc3c3ab.pdf
