Dodge® 112069 DOD112069
  1. pin-int

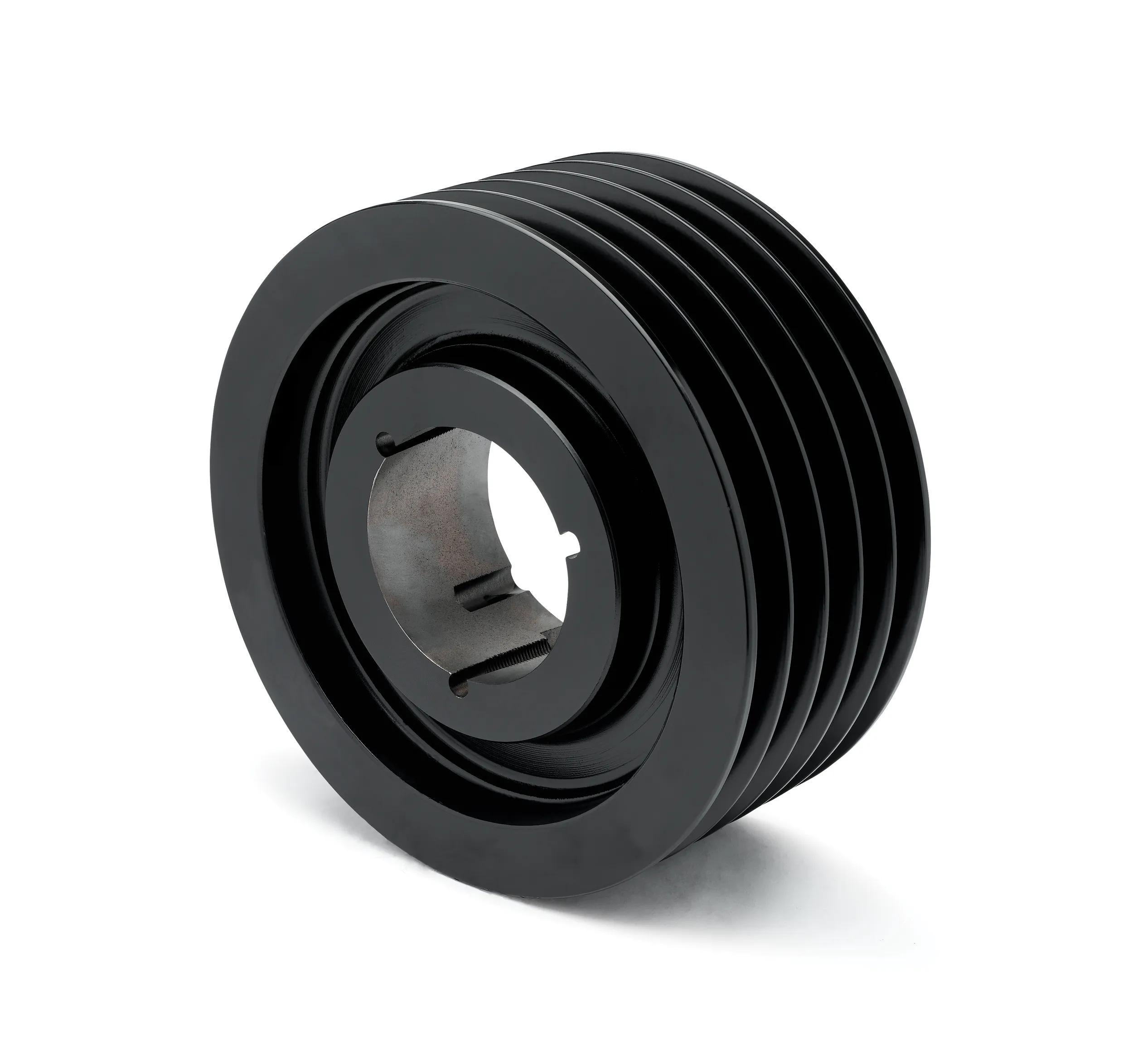

Dodge® 112069 DOD112069

Dodge® 112069 Type C3 Sheave, 15/16 to 3-1/4 in Taper-Lock® Bore, 25 in OD, 5 Grooves, 24.95 in Dia Pitch, 2.31 in W Face, Alternate Part Number: 5-3V25.0-3030

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD112069
  • Alt Part Number: 5-3V25.0-3030
  • MPN: 112069
  • UPC: 782475086559
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sheaves are manufactured in Dodge® plants under strict quality control assurances. Precision machining meets or exceeds joint extended belt life. Dodge® manufactures all sheaves in plants certified to ISO 9002 quality standards.

Dodge® Sheave, Type C3, Taper-Lock® Bore, 15/16 to 3-1/4 in Bore, 25 in OD, 24.95 in Pitch Diameter, 5 Grooves, 2.31 in Face Width, 3030 Bushing, For Use With: 3V-Cross Section V-Belts, Cast Iron, Gray

Bore Diameter      :      15/16 to 3-1/4 in
Bore Type      :      Taper-Lock®
Bushing Type      :      3030
Face Width      :      2.31 in
Finish      :      Gray
Material      :      Cast Iron
Number of Grooves      :      5
Outside Diameter      :      25 in
Pitch Diameter      :      24.95 in
Suitable For Use With      :      3V-Cross Section V-Belts
Type      :      Type C3
  • Isolates shock loads and vibration
  • Minor misalignment capability
  • Drive ratios of 6:1 or more possible
  • Low maintenance
  • No lubrication required
  • Typically 95% efficiency can be obtained
