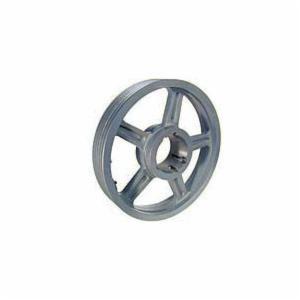

Dodge® 111052 DOD111052
Dodge® 111052 Arm Type A Sheave, 1-15/16 to 4-1/2 in Taper-Lock® Bore, 50 in OD, 5 Grooves, 49.9 in Dia Pitch, 3-3/4 in W Face
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD111052
- Alt Part Number: 5/5V50.0-4545
- MPN: 111052
- UPC: 782475085360
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® branded sheaves come in two bushing styles, QD and Taper Lock®. In addition to these bushing choices, Dodge® now offers choices within our QD sheaves line. Our QD sheave line comes in a standard duty and a heavy duty offering.
Dodge® Sheave, Arm Type A, Taper-Lock® Bore, 1-15/16 to 4-1/2 in Bore, 50 in OD, 49.9 in Pitch Diameter, 5 Grooves, 3-3/4 in Face Width, 4545 Bushing, 3-3/4 in Overall Length, For Use With: 5V-Cross Section V-Belts, Iron, Gray
| Bore Diameter | : | 1-15/16 to 4-1/2 in |
| Bore Type | : | Taper-Lock® |
| Bushing Type | : | 4545 |
| Face Width | : | 3-3/4 in |
| Finish | : | Gray |
| Material | : | Iron |
| Number of Grooves | : | 5 |
| Outside Diameter | : | 50 in |
| Overall Length | : | 3-3/4 in |
| Pitch Diameter | : | 49.9 in |
| Suitable For Use With | : | 5V-Cross Section V-Belts |
| Type | : | Arm Type A |
- Isolates shock loads and vibration
- Minor misalignment capability
- Drive ratios of 6:1 or more possible
- Low maintenance drive and no lubrication
- No lubrication required
- Typically 95% efficiency can be obtained
Instruction/Installation Manual
