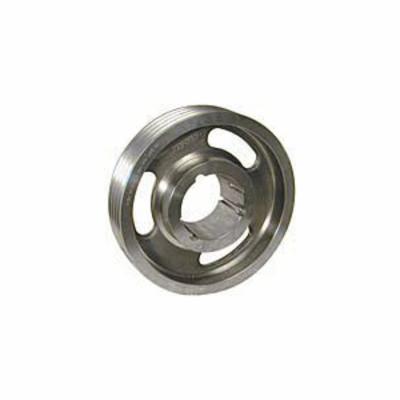

Dodge® 111032 DOD111032
Dodge® 111032 Type C3 Sheave, 1-3/16 to 3-15/16 in Taper-Lock® Bore, 28 in OD, 4 Grooves, 27.9 in Dia Pitch, 3.06 in W Face
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD111032
- Alt Part Number: 4-5V28.0-3535
- MPN: 111032
- UPC: 782475085187
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Sheaves are manufactured in Dodge® plants under strict quality control assurances. Precision machining meets or exceeds joint extended belt life. Dodge® manufactures all sheaves in plants certified to ISO 9002 quality standards.
Dodge® Sheave, Type C3, Taper-Lock® Bore, 1-3/16 to 3-15/16 in Bore, 28 in OD, 27.9 in Pitch Diameter, 4 Grooves, 3.06 in Face Width, 3535 Bushing, For Use With: 5V-Cross Section V-Belts, Cast Iron, Gray
| Bore Diameter | : | 1-3/16 to 3-15/16 in |
| Bore Type | : | Taper-Lock® |
| Bushing Type | : | 3535 |
| Face Width | : | 3.06 in |
| Finish | : | Gray |
| Material | : | Cast Iron |
| Number of Grooves | : | 4 |
| Outside Diameter | : | 28 in |
| Pitch Diameter | : | 27.9 in |
| Suitable For Use With | : | 5V-Cross Section V-Belts |
| Type | : | Type C3 |
- Isolates shock loads and vibration
- Minor misalignment capability
- Drive ratios of 6:1 or more possible
- Low maintenance
- No lubrication required
- Typically 95% efficiency can be obtained
Instruction/Installation Manual
