Dodge® 110967 DOD110967

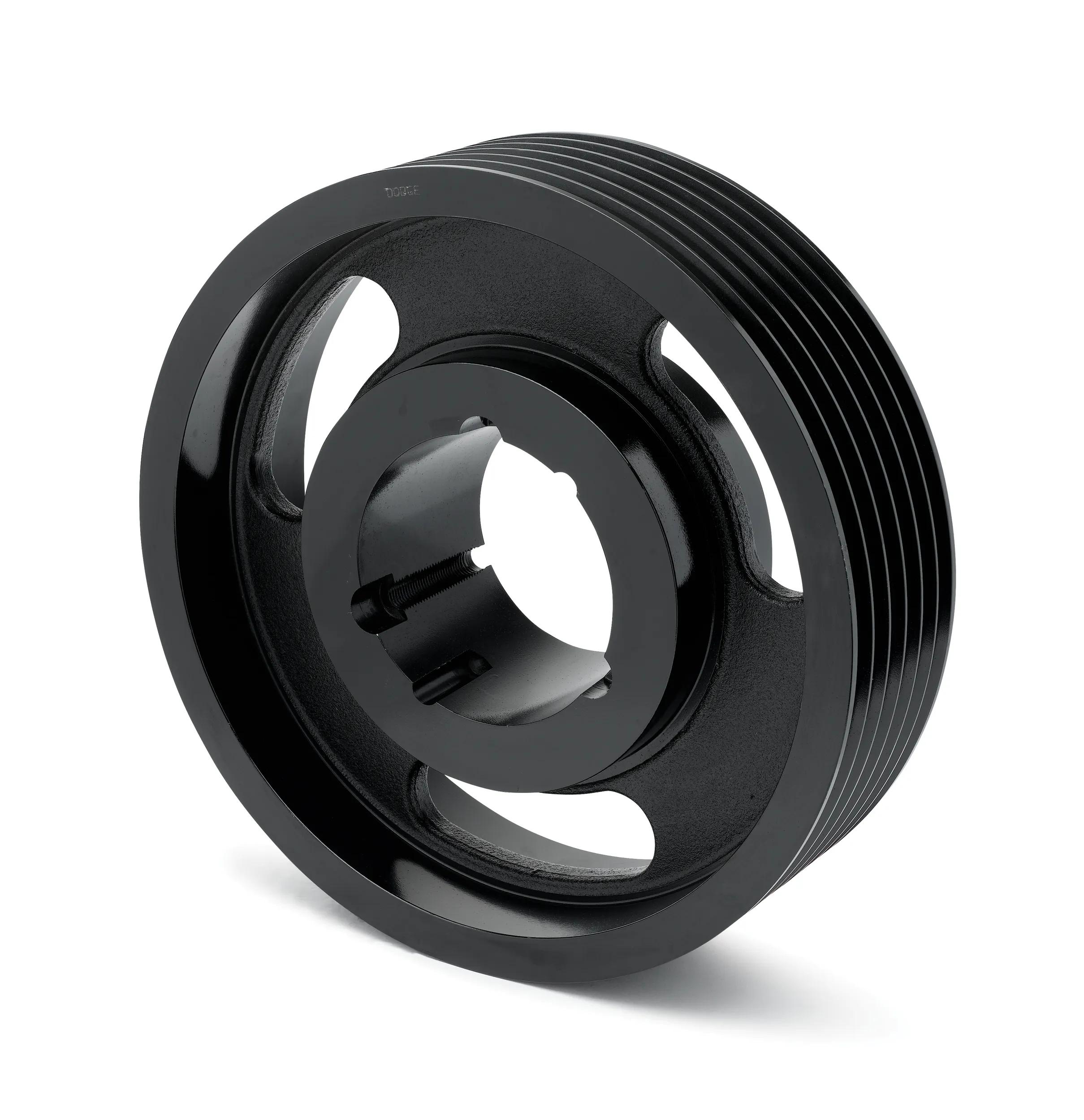

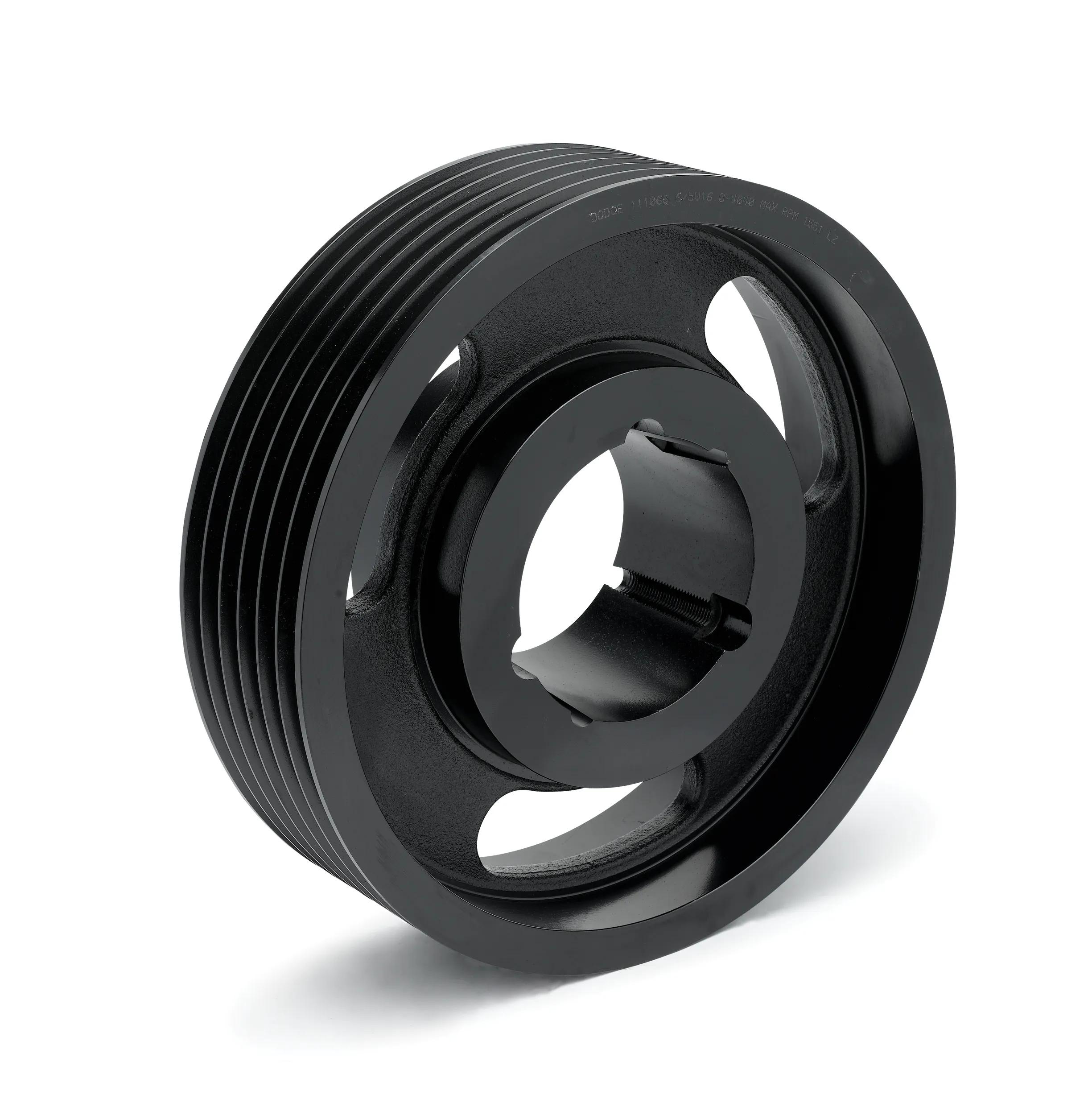

Dodge® 110967 Arm Type D Sheave, 2-7/16 to 5 in Taper-Lock® Bore, 20 in OD, 6 Grooves, 19.8 in Dia Pitch, 7.12 in W Face
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD110967
- Alt Part Number: 6/8V20.0-5050
- MPN: 110967
- UPC: 782475651220
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® branded sheaves come in two bushing styles, QD and Taper Lock®. In addition to these bushing choices, Dodge® now offers choices within our QD sheaves line. Our QD sheave line comes in a standard duty and a heavy duty offering.
Dodge® Sheave, Arm Type D, Taper-Lock® Bore, 2-7/16 to 5 in Bore, 20 in OD, 19.8 in Pitch Diameter, 6 Grooves, 7.12 in Face Width, 1.31 in Hub Projection, 5050 Bushing, 8.43 in Overall Length, For Use With: 8V Cross Section V-Belts, Iron, Gray
| Bore Diameter | : | 2-7/16 to 5 in |
| Bore Type | : | Taper-Lock® |
| Bushing Type | : | 5050 |
| Face Width | : | 7.12 in |
| Finish | : | Gray |
| Hub Projection | : | 1.31 in |
| Material | : | Iron |
| Number of Grooves | : | 6 |
| Outside Diameter | : | 20 in |
| Overall Length | : | 8.43 in |
| Pitch Diameter | : | 19.8 in |
| Suitable For Use With | : | 8V Cross Section V-Belts |
| Type | : | Arm Type D |
- Isolates shock loads and vibration
- Minor misalignment capability
- Drive ratios of 6:1 or more possible
- Low maintenance drive and no lubrication
- No lubrication required
- Typically 95% efficiency can be obtained
Specification Sheet
