Dodge® 110964 DOD110964
  1. pin-int

Dodge® 110964 DOD110964

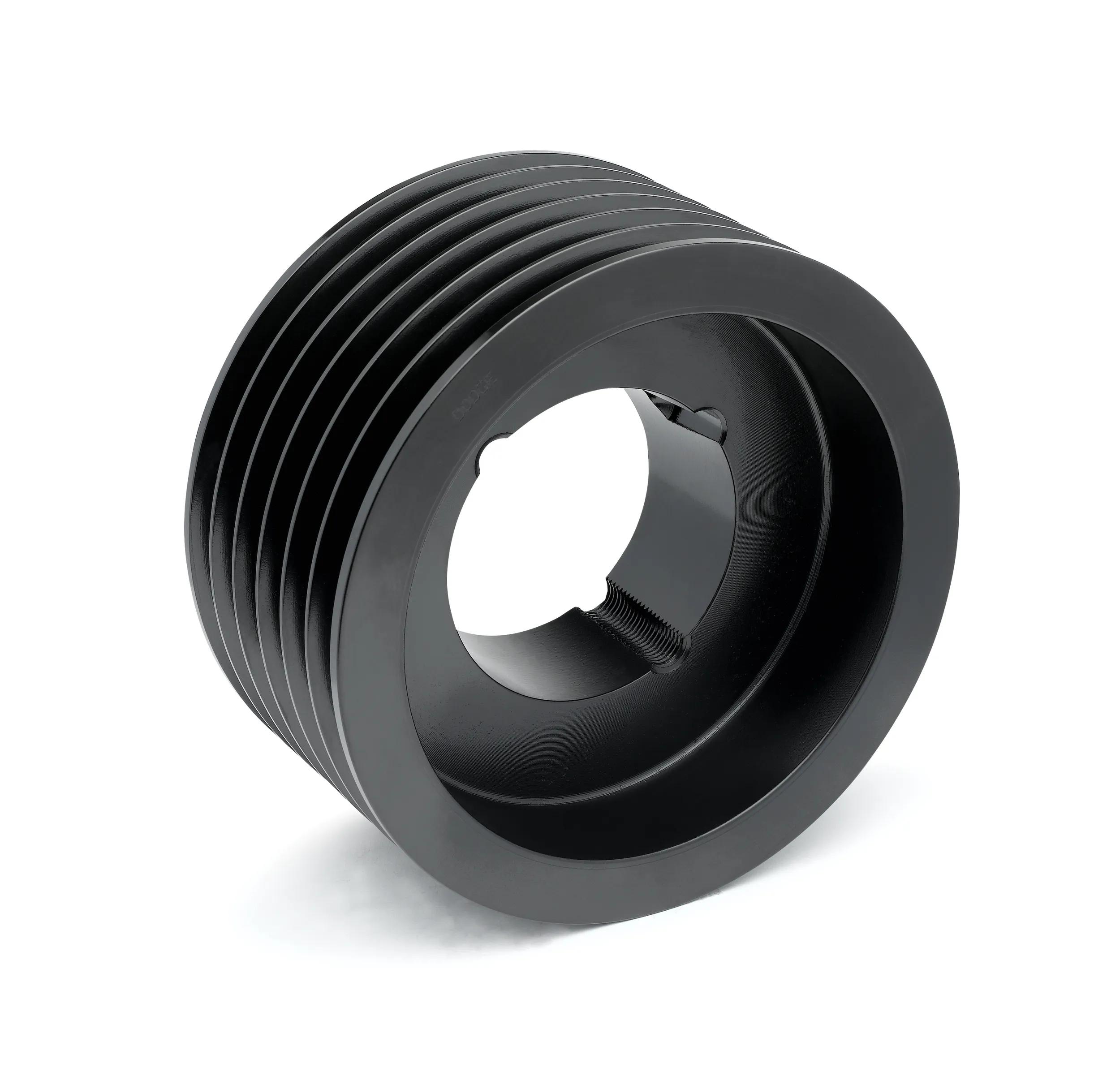

Dodge® 110964 Type A1 Sheave, 1-7/16 to 4-7/16 in Taper-Lock® Bore, 12-1/2 in OD, 6 Grooves, 12.3 in Dia Pitch, 7.12 in W Face

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD110964
  • Alt Part Number: 6-8V12.5-4040
  • MPN: 110964
  • UPC: 782475655281
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sheaves are manufactured in Dodge® plants under strict quality control assurances. Precision machining meets or exceeds joint extended belt life. Dodge® manufactures all sheaves in plants certified to ISO 9002 quality standards.

Dodge® Sheave, Type A1, Taper-Lock® Bore, 1-7/16 to 4-7/16 in Bore, 12-1/2 in OD, 12.3 in Pitch Diameter, 6 Grooves, 7.12 in Face Width, 4040 Bushing, For Use With: 8V Cross Section V-Belts, Cast Iron, Gray

Bore Diameter      :      1-7/16 to 4-7/16 in
Bore Type      :      Taper-Lock®
Bushing Type      :      4040
Face Width      :      7.12 in
Finish      :      Gray
Material      :      Cast Iron
Number of Grooves      :      6
Outside Diameter      :      12-1/2 in
Pitch Diameter      :      12.3 in
Suitable For Use With      :      8V Cross Section V-Belts
Type      :      Type A1
  • Isolates shock loads and vibration
  • Minor misalignment capability
  • Drive ratios of 6:1 or more possible
  • Low maintenance
  • No lubrication required
  • Typically 95% efficiency can be obtained
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Dodge_110003_Catalog.pdf
