Dodge® 110888 DOD110888
  1. pin-int

Dodge® 110888 DOD110888

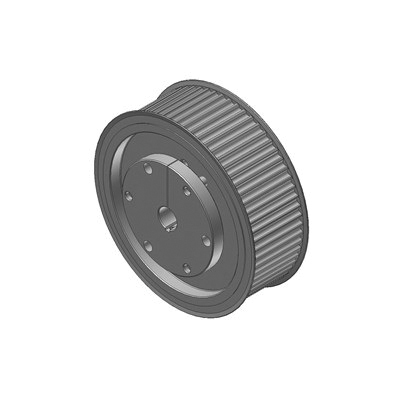

P64-14M-170-J Dodge® 110888 Flanged Solid Type A Belt Sprocket, 1-1/2 to 4-1/2 in QD® Bore, 11.119 in OD, 11.229 in Dia Pitch, 7.38 in W Face

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD110888
  • Alt Part Number: P64-14M-170-J
  • MPN: 110888
  • UPC: 782475265831
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® Belt Sprocket, Flanged Solid Type A, QD® Bore, 1-1/2 to 4-1/2 in Bore Dia, 11.119 in Outside Dia, 11.229 in, 14 mm Pitch, 7.38 in Face Width, 11-3/4 in Flange Dia, J Bushing, 7.38 in Overall Length, For Use With: 170 mm W Type HTD Belt

Bore Diameter      :      1-1/2 to 4-1/2 in
Bore Type      :      QD®
Bushing Type      :      J
Face Width      :      7.38 in
Flange Diameter      :      11-3/4 in
Outside Diameter      :      11.119 in
Overall Length      :      7.38 in
Pitch Diameter      :      11.229 in
Pitch      :      14 mm
Suitable For Use With      :      170 mm W Type HTD Belt
Type      :      Flanged Solid Type A
  • Rated for capacity of standard HTD belts
  • Can run HT200 belts at HTD rating
  • Use HT200 belts for quieter operation than with HTD belts
