Dodge® 108216 DOD108216

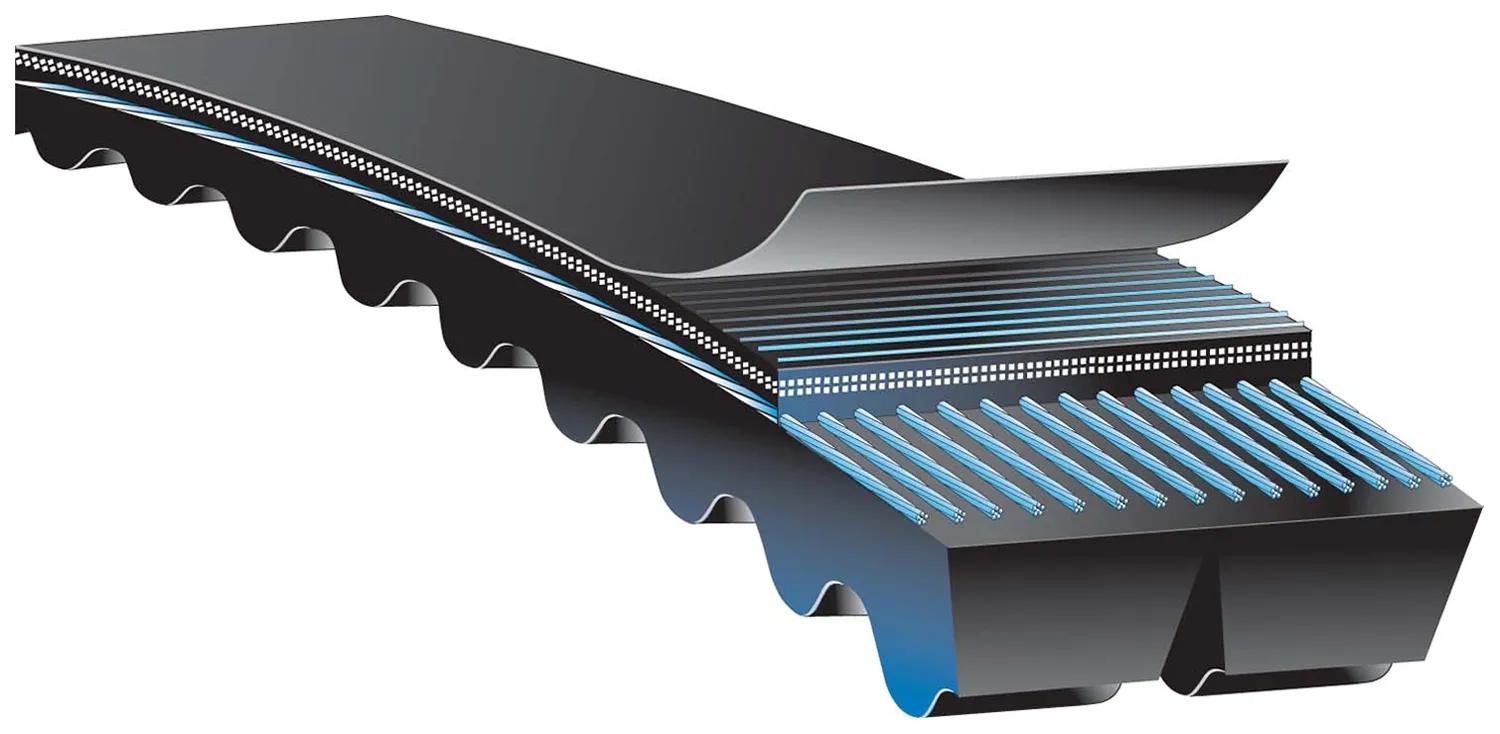

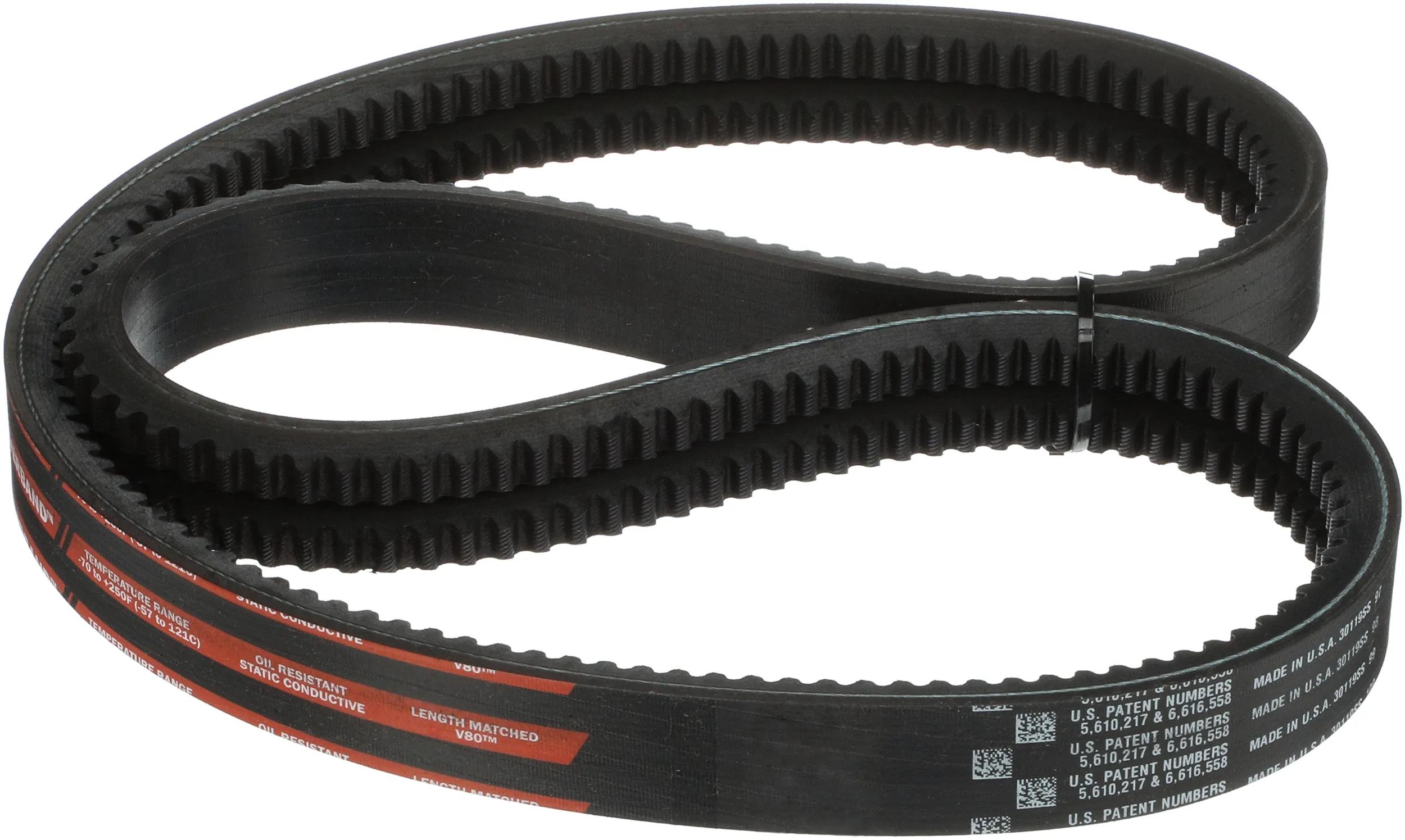

R3VX315-2 Dodge® POLYBAND® 108216 Banded Cogged D-V Wedge Narrow Belt, 3VX Section, 3/8 in W Top, 31-1/2 in L Outside, 5/16 in THK, Neoprene, Alternate Part Number: R3VX315-2
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD108216
- Alt Part Number: R3VX315-2
- MPN: 108216
- UPC: 782475069160
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
POLYBAND® banded V-belts are engineered to handle those problem drives where vibration, sudden shock loads or misalignment causes belts to turn over, whip or jump off sheave. Two or more belts are inseparable joined together as one single unit. POLYBAND® belts may be used without changing sheaves or altering the drive.
Dodge® POLYBAND® D-V Wedge Narrow Belt, Banded Cogged, 3VX Section, 3/8 in Top Width, 31-1/2 in Outside Length, 5/16 in Thickness, 2 Ribs, 2 Bands, Neoprene
| Material | : | Neoprene |
| Number of Bands | : | 2 |
| Number of Ribs | : | 2 |
| Outside Length | : | 31-1/2 in |
| Section Size | : | 3VX |
| Thickness | : | 5/16 in |
| Top Width | : | 3/8 in |
| Type | : | Banded Cogged |
- Oil resistant and static conducting
- Permits compact and lighter weight drives
- High strength tension member delivers maximum power with minimum stretch
- Built for long term dimensional stability
Specification Sheet
