Dodge® 077576 DOD077576

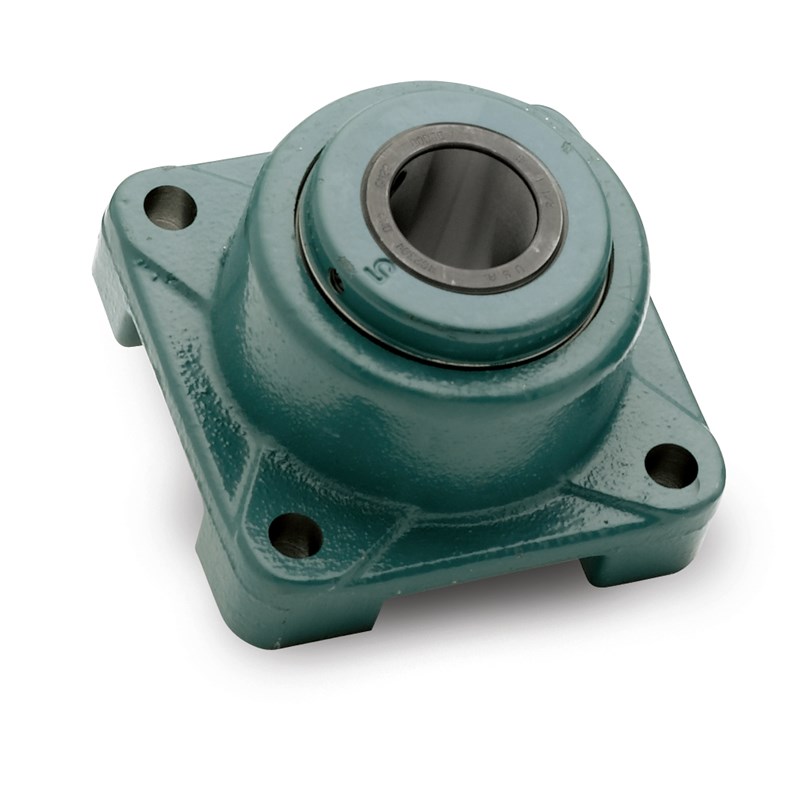

Dodge® 077576 207 Non-Expansion Type S-2000-HD Flange Mount Roller Bearing Unit, 2-7/16 in Dia Bore, Piloted Flange Mount, Alternate Part Number: SFCN-S2-207R
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD077576
- Alt Part Number: SFCN-S2-207R
- MPN: 077576
- UPC: 782475359882
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Unit-housed double-row Dodge® S-2000 spherical roller bearings have higher ratings and long L10 life. A variety of housing styles and sealing options allow for easy application on material and air handling machinery. Industry standard dimensions make the products interchangeable with many brands.
Dodge® Flange Mount Roller Bearing Unit, Non-Expansion Type S-2000-HD, Series: 207, 2-7/16 in Bore, Piloted Flange Mounting, 65 deg Set Screw Locking Device, Steel Bearing, Rubber Seal, 1740 rpm Maximum, Powder Coated
| Bearing Material | : | Steel |
| Bore Diameter | : | 2-7/16 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | Piloted |
| Locking Device | : | 65 deg Set Screw |
| Maximum Speed | : | 1740 rpm |
| Seal Material | : | Rubber |
| Series | : | 207 |
| Type | : | Non-Expansion Type S-2000-HD |
- Factory lubed, sealed and adjusted
- Larger rollers
- More contact area
- Case-carburized inner rings resist cracking
- Static or dynamic misalignment up to +/-1 deg
- Expansion capability up to 3/8 in
- Corrosion resistant flinger blocks contaminants
- Reinforced polyamide cage
- 65 deg setscrew angle Springlok™ collar/ flingers - more holding power than 90 to 120 deg
- Patented nitrile multiple lip seal resists heat and chemical breakdown
