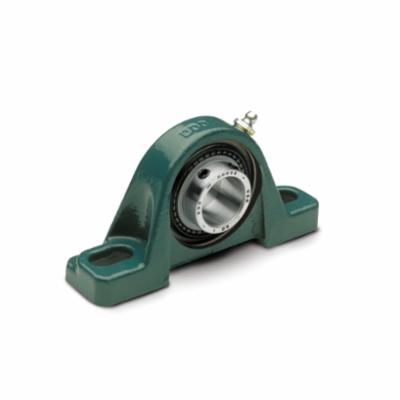

Dodge® 076005 DOD076005

The Dodge® SC/SCMED extreme duty ball bearing offers extended life in the toughest industrial applications. Incorporating patented Dodge®-only features such as the QuadGuard™ sealing system and the Maxlife™ ball cage, the Dodge® SCED/SCMED bearing outperforms the competition in demanding environments where increasing equipment uptime is critical to success. Extreme conditions require highly-engineered products that will last. The Dodge® extreme duty ball bearing is up to the challenge.

Dodge® Pillow Block Ball Bearing Unit, Extreme Duty, Series: 207, 1-1/4 in Bore, 4.68 to 5.44 in Bolt Center-to-Center Length, 1.88 in Base to Bore Centerline, 6-1/2 in Overall Length, 1.52 in Overall Width, 3-3/4 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1-3/4 in Base Width, Set Screw Locking Device, Triple Lip Seal, Non-Expansion (Fixed) Expansion, 5759 lb Dynamic/3461 lb Static Load, 4500 rpm Maximum, Steel, Powder Coated

• The Dodge extreme duty ball bearing incorporates 65 deg setscrews that provide maximum locking force without compromising the strength of the inner ring
• The design also includes an anti-rotation pin that prevents the insert from rotating in the housing under load which causes premature failure
• Rubberized flinger

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Dodge_049841_Instruction_Sheet.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Dodge_076001_Brochure_1.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Dodge_076005_Specification_Sheet.pdf
• Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Dodge_076032_Manual.pdf
