Dodge® 072206 DOD072206
  1. pin-int

Dodge® 072206 DOD072206

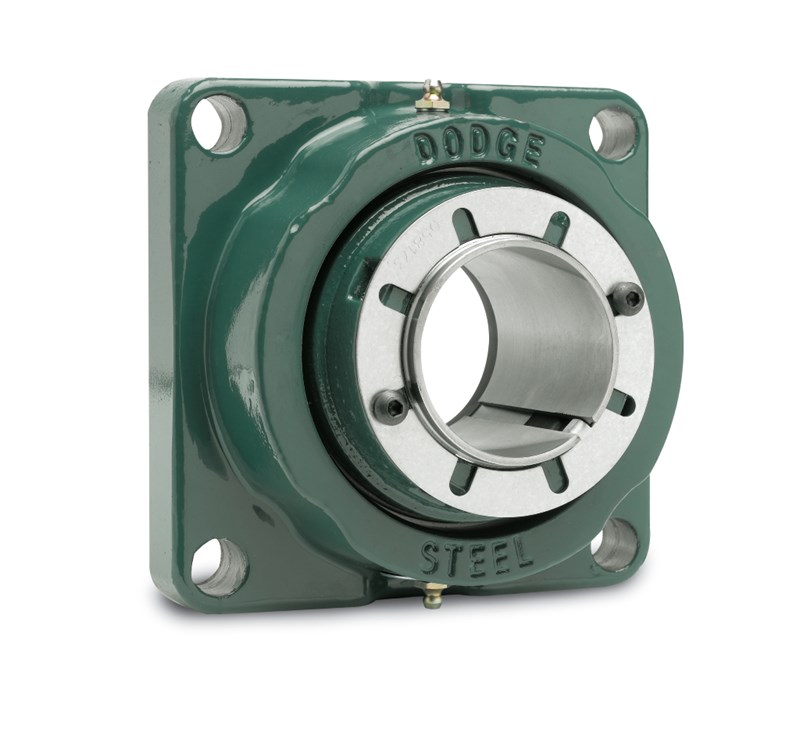

SF4S-IP-112RE Dodge® 072206 111 Series Expansion Imperial-HD Flange Mount Roller Bearing Unit, 1-3/4 in Dia Bore, 3.89 in L Bolt Center-to-Center, 5-1/2 in Dia Bolt Circle, 4-Bolt Base Flange Mount, 5.37 in OAL/Dia, Alternate Part Number: SF4S-IP-112RE

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD072206
  • Alt Part Number: SF4S-IP-112RE
  • MPN: 072206
  • UPC: 782476367978
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Dodge® imperial spherical roller bearings are the only high-capacity double-row spherical roller bearings with an effective easy-on, easy-off adapter mounting and removal system. Not only does this patented system provide a concentric grip for superior holding on the shaft, but it reduces the fretting corrosion caused by traditional setscrews and vibration.

Dodge® Flange Mount Roller Bearing Unit, Expansion Imperial-HD, Series: 111 Series, 1-3/4 in Bore Dia, 3.89 in Bolt Center-to-Center Length, 5-1/2 in Bolt Circle, 4-Bolt Base Flange Mounting Type, 5.37 in Overall Length/Diameter, 3.01 in Overall Depth, 5.37 in Overall Height, Adapter Mounted Locking Device, Steel Bearing, Rubber Seal, 20800 lb Dynamic/22000 lb Static, 3725 rpm Maximum, -100 to 200 deg F, Uncoated

Bearing Material      :      Steel
Bolt Center-to-Center Length      :      3.89 in
Bolt Circle Diameter      :      5-1/2 in
Bore Diameter      :      1-3/4 in
Finish      :      Uncoated
Flange Mounting Type      :      4-Bolt Base
Load Capacity      :      20800 lb Dynamic/22000 lb Static
Locking Device      :      Adapter Mounted
Maximum Speed      :      3725 rpm
Overall Depth      :      3.01 in
Overall Height      :      5.37 in
Overall Length/Diameter      :      5.37 in
Seal Material      :      Rubber
Series      :      111
Temperature Rating      :      -100 to 200 deg F
Type      :      Expansion Imperial-HD
  • Ease in mounting and dismounting achieved through patented adapter system
  • Adapter sleeve improves concentricity and reduces inherent vibration
  • Seal/land maintains full seal contact when misaligned
  • Corrosion resistant flinger blocks contaminants
  • Steel cage with guide rings offers precision roller guidance
  • Patented triple lip nitrile seal resists heat and chemical breakdown
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2b08dc403a0da0fa8602894eff572edd08bd4a864270e0608464fa406cb00782.pdf
