Dodge® 071894 DOD071894

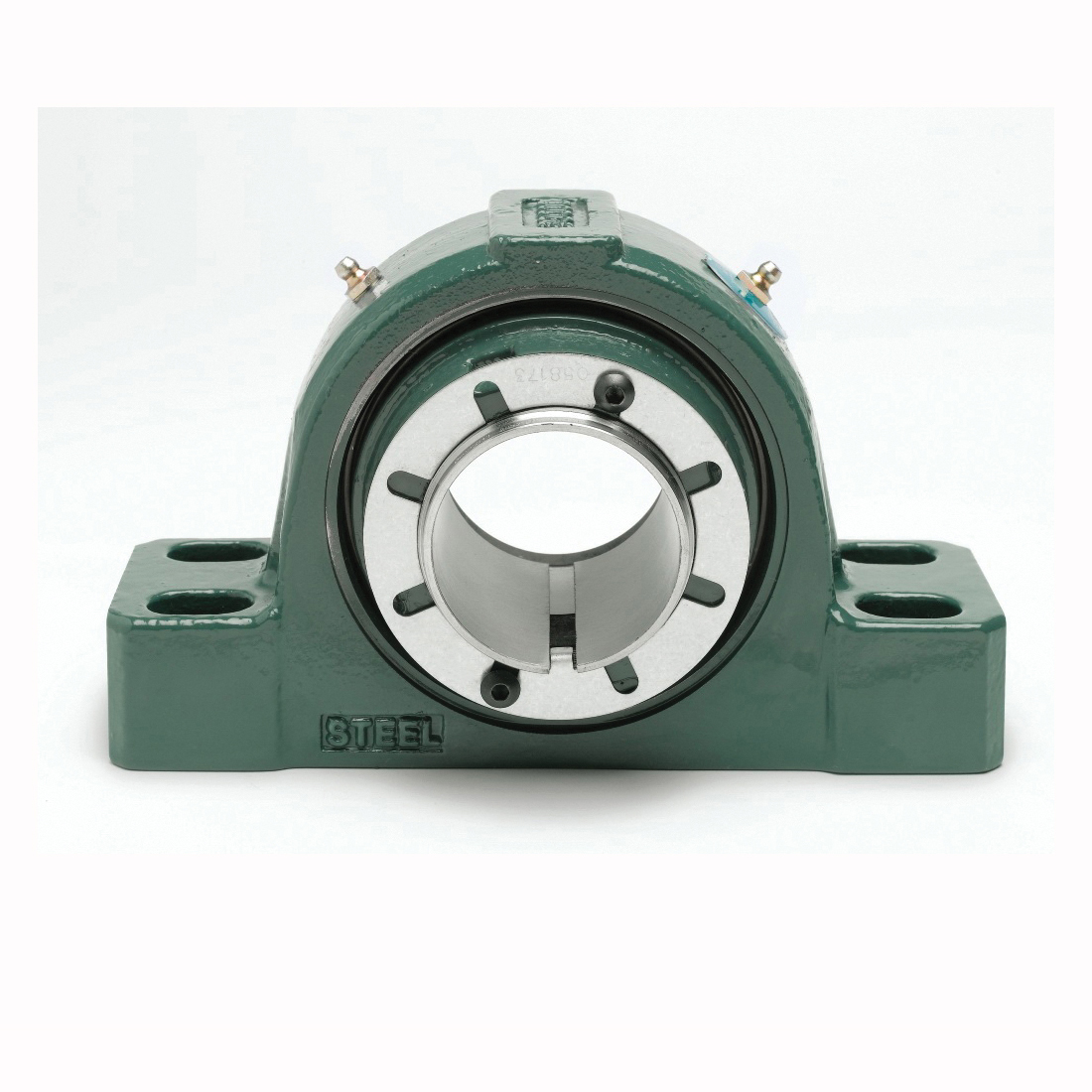

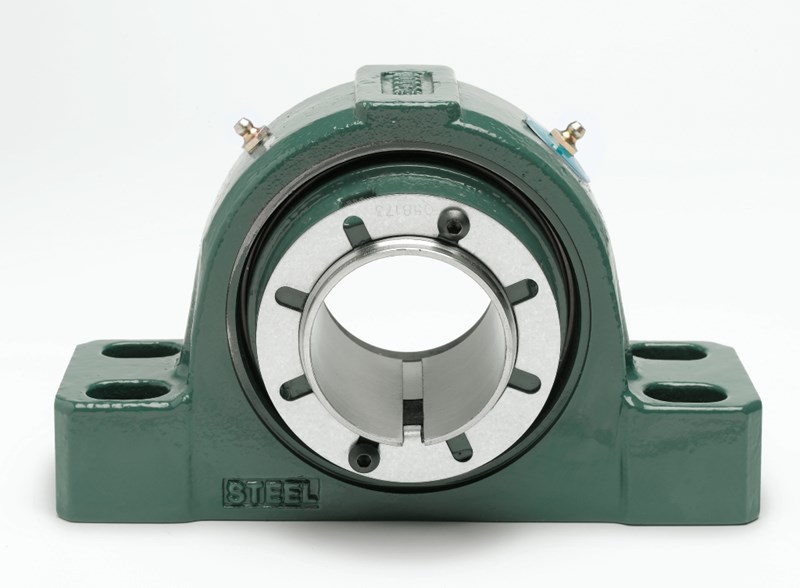

Dodge® 071894 203 Heavy Duty Imperial Type E Pillow Block Roller Bearing Unit, 2-3/16 in Dia Bore, 6.5 to 7.88 in L Bolt Center-to-Center, 2-1/2 in Base to Bore Centerline, 9.63 in OAL, Alternate Part Number: SEP2B-IP-203RE
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD071894
- Alt Part Number: SEP2B-IP-203RE
- MPN: 071894
- UPC: 782476367008
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® imperial spherical roller bearings use a patented adapter mounting system for quick installation and removal. The imperial roller bearing is available in flange, pillow block, or insert configurations, with interchangeable dimensions and superior sealing options.
Dodge® Pillow Block Roller Bearing Unit, Heavy Duty Imperial Type E, Series: 203, 2-3/16 in Bore, 6.5 to 7.88 in Bolt Center-to-Center Length, 2-1/2 in Base to Bore Centerline, 9.63 in Overall Length, 3.03 in Overall Width, Two-Bolt Base Mounting, Round Bore, 2-1/2 in Base Width, Tapered Adapter Sleeve Locking Device, Triple Lip Seal, Expansion, 27000 lb Dynamic/29000 lb Static Load, 3000 rpm Maximum, Steel, Powder Coated
| Base Width | : | 2-1/2 in |
| Base to Bore Centerline | : | 2-1/2 in |
| Bolt Center-to-Center Length | : | 6.5 to 7.88 in |
| Bore Diameter | : | 2-3/16 in |
| Bore Type | : | Round |
| Expansion Type | : | Expansion |
| Finish | : | Powder Coated |
| Load Capacity | : | 27000 lb Dynamic/29000 lb Static |
| Locking Device | : | Tapered Adapter Sleeve |
| Material | : | Steel |
| Maximum Speed | : | 3000 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Length | : | 9.63 in |
| Overall Width | : | 3.03 in |
| Seal Type | : | Triple Lip |
| Series | : | 203 |
| Type | : | Heavy Duty Imperial Type E |
- Misalignment capability
- Expansion capability
- Superior sealing
- Ease in mounting and dismounting achieved through patented adapter system
- Adapter sleeve improves concentricity and reduces inherent vibration
- Corrosion resistant flinger blocks contaminants
- Steel cage with guide rings offers precision roller guidance
