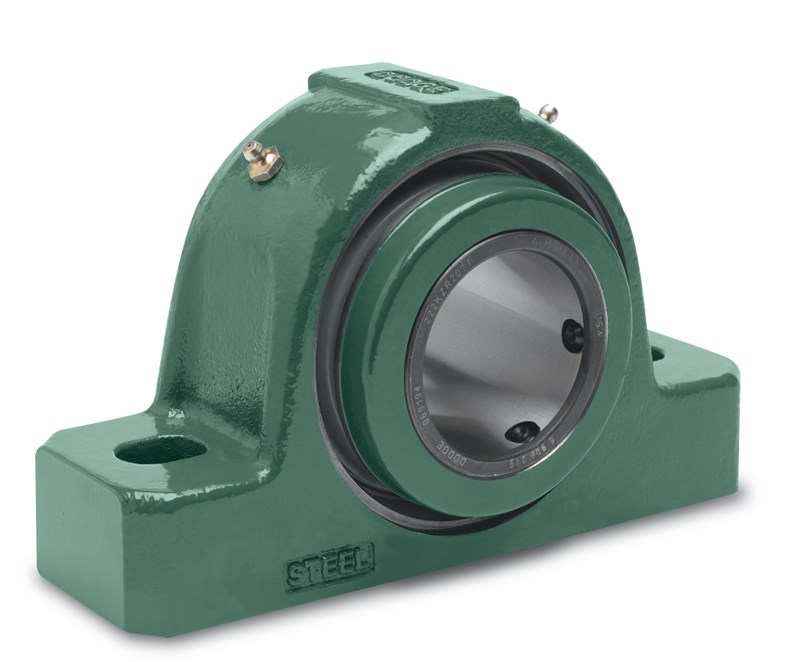

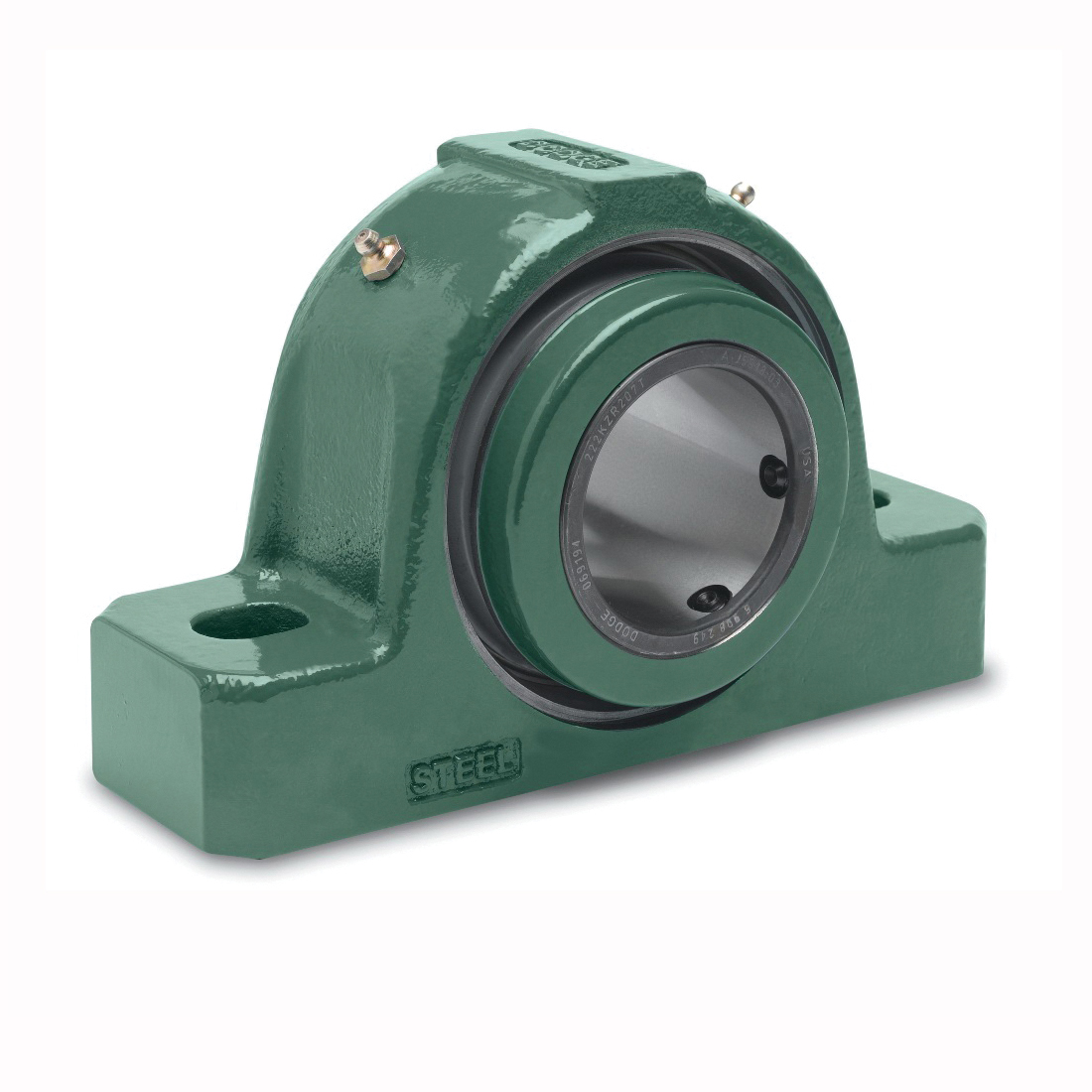

Dodge® 071814 215 Heavy Duty Type S2000 Pillow Block Roller Bearing Unit, 2-15/16 in Dia Bore, 7.7 to 8.4 in L Bolt Center-to-Center, 3-1/4 in Base to Bore Centerline, 10.44 in OAL x 6.38 in OAH

  • Manufacturer: Dodge Industrial
  • Brand Name: Dodge®
  • Part Number: DOD071814
  • Alt Part Number: SP2B-S2-215RE
  • MPN: 071814
  • UPC: 782476366575
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Unit-housed double row Dodge® S-2000 spherical roller bearings have higher ratings and long L10 life. These bearings are in cast iron housings and available in pillow block, flange, and piloted flange versions. A variety of sealing options for easy application and protection make the Dodge® S-2000 a high-capacity bearing with maximum life.

Dodge® Pillow Block Roller Bearing Unit, Heavy Duty Type S2000, Series: 215, 2-15/16 in Bore, 7.7 to 8.4 in Bolt Center-to-Center Length, 3-1/4 in Base to Bore Centerline, 10.44 in Overall Length, 3.59 in Overall Width, 6.38 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2.91 in Base Width, 65 deg Set Screw Locking Device, Trident™ Seal, Expansion Expansion, 41500 lb Dynamic/53000 lb Static Load, 1490 rpm Maximum, Steel, Powder Coated

Base Width      :      2.91 in
Base to Bore Centerline      :      3-1/4 in
Bolt Center-to-Center Length      :      7.7 to 8.4 in
Bore Diameter      :      2-15/16 in
Bore Type      :      Round
Expansion Type      :      Expansion
Finish      :      Powder Coated
Load Capacity      :      41500 lb Dynamic/53000 lb Static
Locking Device      :      65 deg Set Screw
Material      :      Steel
Maximum Speed      :      1490 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      6.38 in
Overall Length      :      10.44 in
Overall Width      :      3.59 in
Seal Type      :      Trident™
Series      :      215
Type      :      Heavy Duty Type S2000
  • Misalignment capability
  • Expansion capability
  • Superior sealing
  • Patented nitrile multiple lip seal resists heat and chemical breakdown
  • Seal land maintains full seal contact when misaligned
  • Corrosion resistant flinger blocks contaminants
